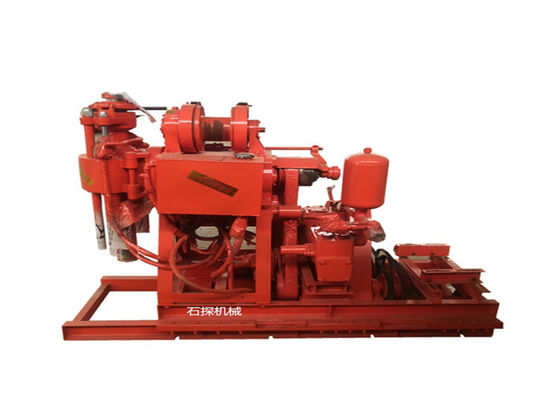

| Drilling Rig |
| Drilling diameter(mm) |
75,91,110,130,150,300 |
| Drilling depth (m) |
180,150,100,70,50,30 |
| Drill pipe diameter (mm) |
42,50 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1750 * 780 * 1273 (mm) |
| Rig weight (except engine) |
595 |
| Gyrator |
| Spindle speed (four gear) (r/min) |
71,182,310,790 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
20 |
| Reel speed (r/min) |
20,39,85,170 |
| Reel circumferential speed(m/s) |
0.172,0.345,0.738,1.476 |
| Reel diameter(mm) |
140 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
40 |
| Brake diameter(mm) |
278 |
| Brake band width (mm) |
50 |
| Water pump |
| Pump type |
Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) |
95(77) |
| Work pressure (Mpa) |
1.2 |
| Cylinder diameter (mm) |
80 |
| Piston stroke(mm) |
100 |
| The maximum allowable pressure (Mpa) |
1.2 |
| Oil pump |
| Oil pump type |
YBC -20/125 |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-1500 |
| Diesel engine or motor |
| Diesel engine |
ZS 1115 |
| Rated power (KW) |
16.2 |
| Rated speed (r/min) |
2200 |
| Rated pressure(Mpa) |
11 |
| Motor type |
Y160 - 4 |
1 Application
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling. The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
