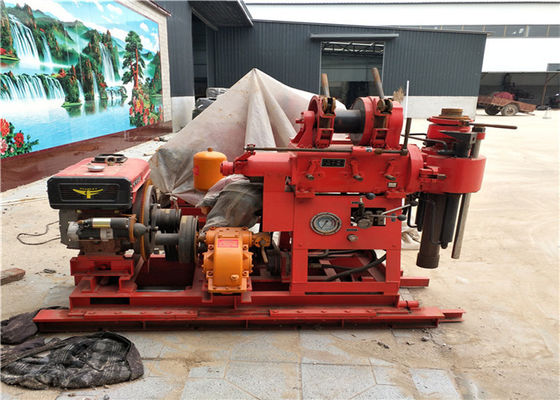

ST200 Core Drill Rig 200m , Borehole Drilling Rig With Hydraulic Power

ST200 Coring Rig 200m Water Well Drilling Rig Borehole Drilling Machine

Main Parameter

(1) Rated drilling depth:200m,The deepest shall not exceed 220m.

Rated opening diameter:200mm.

Maximum opening diameter : 300mm.

Drilling depth and drilling diameter shall be determined according to the formation conditions.
(2) The vertical speed (four steps):118,236,505,1010.r/rain
(3) Max output torque:1500N. m
(4) Maximum weight (a speed of single rope):17KN
(5) drill pipe diameter:42mm
(6) Borehole inclination:90~75°
(7) Rig overall dimensions·(L×B×H)1433×697×1273mm
(8) Rig weight:500kg(Transfer machines 620kg, transfer machine with pump 720kg)
(9) Engine model:S1115

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
