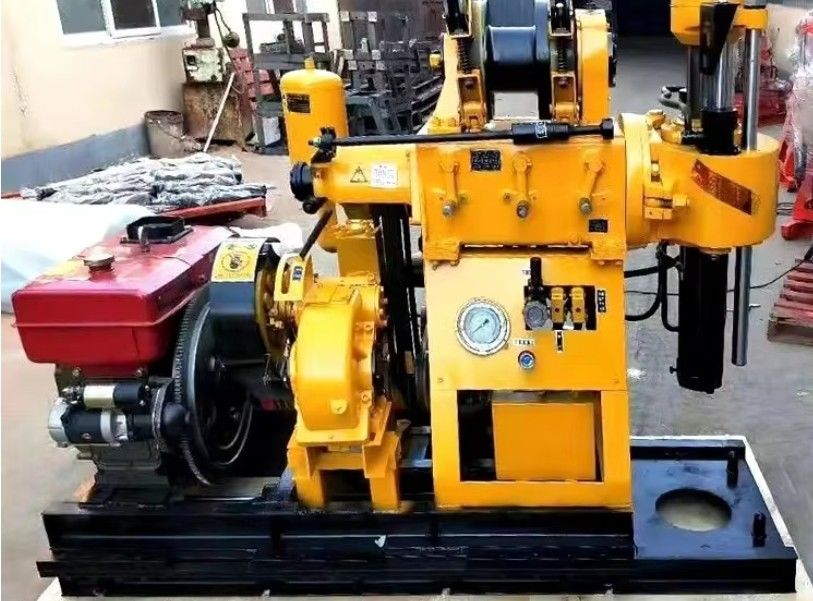

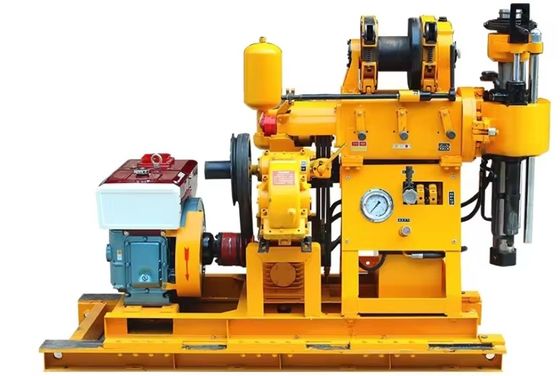

Geological Survey Water Well Drilling Rig , Water Drilling Borehole Machine 200M
Introduction to drilling rig
This equipment is a kind of full multifunctional and steady function deep core drilling rig.It suitable for alloy/diamond core drilling,widely used for exploration and gelogical survey,construction project,water-power engineering project,highway,railway and seaport drilling project.Also suitable for drill a water well .
Product Parameter:
| Drilling depth | 110 m |
| Maximum open hole diameter | 220mm |
| End hole diameter | 75mm |
| Drilling pipe diameter | 50mm 42mm |
| Drilling angle | 90 |
| Drilling rig weight (exclude diesel engine) | 610kg |
| External dimensions | 2.1*0.9*1.3m |
| Spindle |
| Spindle speed | 130/300/480/730/830/1045 r/min |
| Spindle stroke | 450mm |
| Windlass |
| Lifting power (single rope) | 1600kg |
| Lifting speed (single rope) | 1.06/0.67/0.32 m/s |
| Wire-rope diameter | 13mm |
| Windlass capacity in terms of rope length | 35m |
| Brake belts width | 50mm |
| Mud pump |
| Type | Horizontal single cylinder double acting |
| Displacement (diesel engine/electric motor) | 170L/min |
| Maximum pressure | 1.5mpa |
| Working pressure | 0.7mpa |
| Power |
| Diesel engine | S1100 |
| Electric motor | Y160M-4 10KW |
Characteristics of drilling rig
1, 53X59 driving lever is adopted ,high rigitidy,strong delivery torque
2, This machine adopts national patent technology taper clutch,with charactristics of strong transmission torque,easy opeation,free maintenance
3, Hoist planetary gear module and the installation of supporting frames greatly increasing the upgrading and braking ability of the hoist
4, Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer,the comples geolohical conditions
5, We are the first one to equip mud pump with the flow 160L/min,with characteristics of saving cost ,compact,mobile ,lightweight
Advantage of this drilling machine
1,Adopt auto vehicle transmission and cluth,good speed gear,easy operation.
2,Taper clutch with outstanding transmission torque, easy operation and maintenance-free features
3,With light structure,easy disassemble,convenient to move.
4,Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
