Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 CE | Keywords: | Self Loading Mini Dumper |
|---|---|---|---|
| Tire: | Crawler-type | Transmission Type: | Automatic |
| Color: | Customised | Application: | Farm, Mining, Transport |
| High Light: | small tracked dumpers,mini crawler dumper |
||

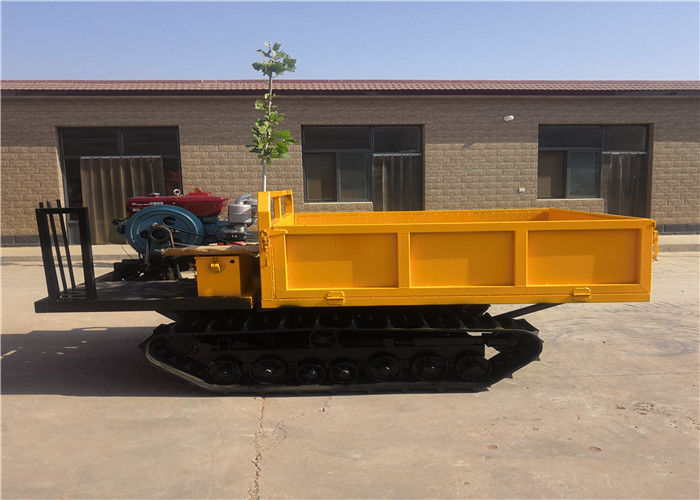

4 Ton Mini Crawler Mini Dumper Hydraulic Mini Transporter
Product Description
4 ton rated load hydraulic crawler dumper
Product Application
4 ton rated load hydraulic crawler dumper is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.
Main Features for 4 ton rated load hydraulic crawler dumper
1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.
Technical data for 4 ton rated load hydraulic crawler dumper
| NO. | Specification | 4 Ton |
| 1 | dumper truck weight | 3000kgs |
| 2 | Max load | 4000kgs |
| 3 | Max grade ability | 30° |
| 4 | Total dimension | 3700*1750*1850mm |
| 5 | Hopper dimension | 2200*1750*600mm |
| 6 | Track shoe width | 320mm |
| 7 | Track length | 5000mm |
| 8 | Track height | 575mm |
| 9 | Track outside width | 1600mm |
| 10 | Track inside width | 960mm |
| 12 | Track Pitch | 56mm |
| 13 | Number of tracks | 90pcs |
| 14 | Track grounding length | 1730mm |
| 15 | Track type | Mechanical engineering rubber tracks. |
| 16 | Engine model | WEICHAI POWER 4105 |
| 17 | Cylinders | 4 units |
| 18 | Horsepower | 82.2HP |
| 19 | Engine power | 60kw |
| 20 | Overturning cylinder | Single/ double cylinder |
| 21 | Hydraulic oil cylinder | 105mm |
| 22 | Bore stroke | 750mm |
| 23 | Gears | Three forward gears and a reverse gear |
| 24 | Thickness of floor plate | 4mm |
| 25 | Thickness of side plates | 3mm |
