| Product Name: | Soil Testing Drilling Rig Machine | Condition: | New |
|---|---|---|---|
| Geological: | Soil, Rock, Hard Rock, | Drilling Depth: | 200 |
| Type: | Portable Type | Usage: | Soil Testing Drilling |
| Net Weight: | 600 KG | Warranty: | 1 Year |
| High Light: | soil sample testing equipment,soil testing drilling rig |
||

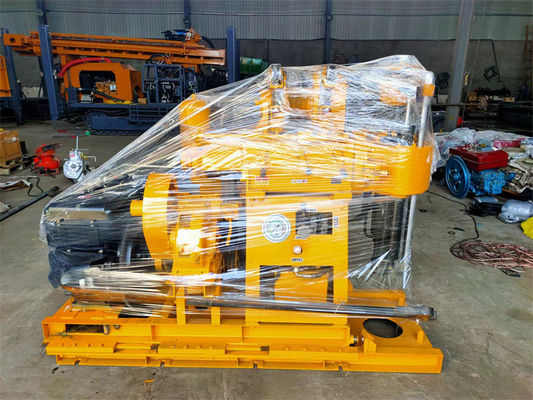

200m Spindle Type Geotechnical Soil Test Drilling Machine Drill Rig Portable
Feature:
GK-200 type drilling rig is a hydraulic feeding of low speed and high torque portable drilling rig.
The railway, hydro power, traffic bridges foundation and other buildings in the engineering geological investigation.
The geological core drilling, geophysical survey
GK-200 Drilling Rig Detail Data:
| Drill Rig Specification | |
| Drilling depth | 200m |
| Drilling Diameter | 91mm,110mm,130mm,150mm,300mm |
| Drilling rod diameter | 50mm |
| Drilling Angle | 90°-75° |
| Dimensions(L×W×H) | 1750×850×1300 (mm) |
| Weight | 880kg/set |
| Swivel Head | |
| Spindle Speed | 115, 230, 505, 790, 1010 r/min |
| Spindle stroke | 450mm |
| Spindle Dia. | Φ65mm (59x53 kelly drilling rod) |
| Upward displacement speed of drilling vertical spindle | 0.05m/s |
| Downward displacement speed of drilling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Vertical maximum output torque | 1.5KN.m |
| Hoist | |
| Max. Lifting capacity(single rope) | 20KN.m |
| Lifting rotating speed | 20; 40; 90; 168r/min |
| Hoisting drum linear velocity (two levels) | 0.17; 0.35; 0.73; 1.5m/s |
| Drum Diameter | 140mm |
| Wire rope diameter | 9.3mm |
| Wire rope capability | 40m |
| Gear Pump | |
| Model | YBC-12/125 |
| Rated pressure | 12.5Mpa |
| Displacement | 20ml/r |
| Rated Speed | 2000r/min |
| Mud Pump | |
| Type | BW-160 |
| Displacement | 160 L/min |
| Working pressure | 1.3 Mpa |
| Stroke | 85mm |
| Drive shaft speed | 951 r/min |
| Drive power | 5.88KW |
| Diameter of inlet pipe | 45mm |
| Diameter of outlet pipe |
38mm |
Drilling Rig Description:
1. Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core drilling, mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.
The characteristics of drilling rig:
1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.
