Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color

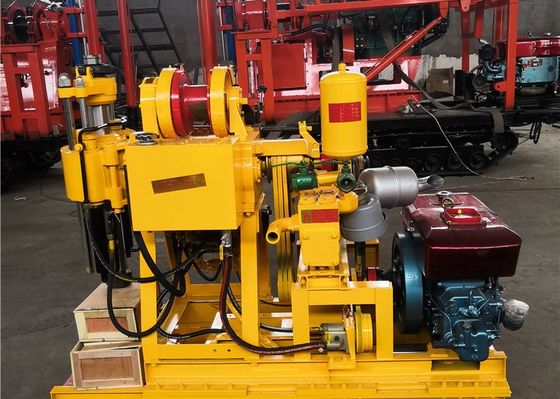

Large Image : Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color

Product Details:

Place of Origin:	China
Brand Name:	Shitan
Certification:	ISO9001
Model Number:	XY-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Soil Testing Drilling Rig Machine	Drilling Way:	Rotary
Geological:	Soil, Rock, Hard Rock,	Transport Package:	In Wooden Case
Chuck:	Hydraulic Chuck	Usage:	Soil Sample
Net Weight:	600 KG	Warranty:	1 Year
Highlight:	soil sample testing equipment , soil testing drilling rig

Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color

Soil Test Drilling Machine Applications

series drilling rig is a shallow/ medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.

Drilling rig parameters

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm

Characteristics of drilling rig

A. 53*59 drilling rod adopted,high rigidity and strong delivery torque.

the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.

B. for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.

C. vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

D. we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.

Soil Test Drilling Machine advantage

1. The rig is equipped with wheeled walking mechanism and hydraulic cylinder pillar, the whole machine is easy to move, to
facilitate the level of drilling rig.
2. has a hydraulic feed mechanism to improve drilling efficiency.
3. drilling machine with a ball-type clamping mechanism instead of chuck, can be implemented non-stop inverted bar, high efficiency, easy to operate safe and reliable.
4. with a bottom hole pressure gauge indicating pressure, easy to grasp the hole situation
5. the tower for the hydraulic operation, convenient and reliable.
6. diesel engine using electric start, reduce the labor intensity of
workers.
