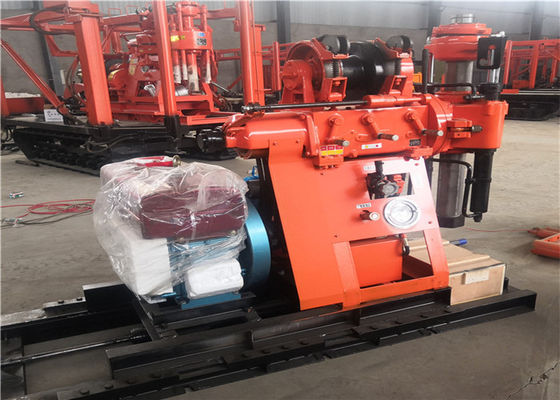

GXY -1A Low Noise Core Drill Rig For Soil Sampling And Geological Exploration

GXY -1A Low Noise Core Drill Rig For Soil Sampling And Geological Exploration
GXY -1A Low Noise Core Drill Rig For Soil Sampling And Geological Exploration

Large Image :  GXY -1A Low Noise Core Drill Rig For Soil Sampling And Geological Exploration

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: GXY-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: Soil Testing Drilling Rig Machine Geological: Soil, Rock, Hard Rock
Type: Portable Type Application: Different Field Drilling
Name: Water Well Drilling Machine Name2: Small Water Well Drilling Machine
High Light:

rock core drilling machine

,

geological drilling machine



GXY-1A Core Drilling Rig For Soil Sampling And Geological Exploration

1, It is used in engineering geology exploration, survey and exploration for soild ore deposit, blast hole and inspection hole of various concret structures.

2, It can use cemented carbide or auger diamond drill bit in accordance with different strata.

3, Features large input power, large output torque and strong drilling capacity.

4, With hydraulic feeding structure.

5, Adopts ball chuck or hydraulic clamp chuck.

6, Adopts hydraulic control device to move away from hole, improve working efficiency.

7, High speed rig model is suitable for diamond bit drilling to very hard strata.

8, Can be mounted on trailer or crawler featuring strong mobility.

9, Compact structure, small size, light weight and convenient assembly and dissassembly.

10, Suitable working in hilly land or mountain areas.



bore diameter 150, 76, 46mm
bore depth 40, 160, 200m
power head output rotation speed forward: 61~654 r/min 4 speed
reverse: 45 r/min
stroke 500mm
max. pressure force 15KN
max. lifting force 25KN
drill rod clamping way ball chuck
drilling hole exposure way power head hydraulic control backward
hoist lifting force 15KN
lifting speed 0.22, 0.95, 1.95, 5.3 m/sec
diesel model and power S1100M, 11KW
electric motor model and power Y160M-4, 11KW
overall size 1800 x 1200 x 1500mm
weight 650Kg

GXY -1A Low Noise Core Drill Rig For Soil Sampling And Geological Exploration 0

GXY-1A Core Drilling Rig For Soil Sampling And Geological Exploration

GXY-1A Core Drilling Rig For Soil Sampling And Geological Exploration
