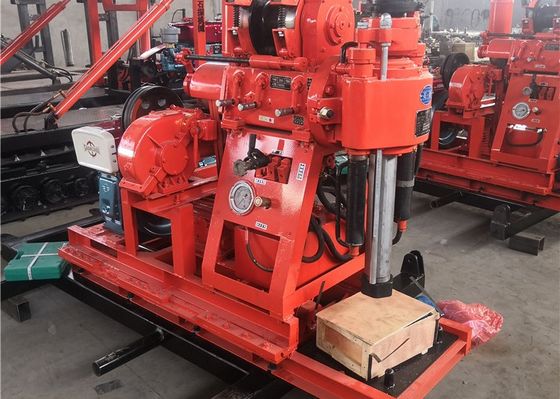

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150
High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150
video play

Large Image :  High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: XY-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: Soil Testing Drilling Rig Machine Weight: 600 KG
Geological: Soil, Rock, Hard Rock Drilling Depth: 50-150 Meter
Type: Portable Type Application: Different Field Drilling
Warranty: 1 Year Product Name: Small Bottle Filling Machine
High Light:

soil sample testing equipment

,

soil testing drilling rig

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150





Applications



XY-150 drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner



XY-150 Main Technical Parameters



Drilling depth 150m
Maximum open hole caliber 400mm
End hole caliber 75mm
Diameter of drill rod 50mm
Drilling angle 90~75
Weight(not include power) 760kg
Dimension

2000mm*1000mm*1400mm





Features of  small hydraulic core drill rig



1. Power can be electric motor or diesel engine as options.

2. Two or four wheels can be mounted on tractors, trailers or cars. Easy for outdoor and rugged place drilling.
3. Integrated mud pump, gearbox, hoist, etc. Not only saving land, but also easy to take and operate.
4. Different operation handles to control working. One person is able to operate it.

5. Easy to assemble and dissemble. One person is able to handle.



Main Features


a. 46x 51drilling rod adopted, high rigidity and strong delivery torque.
b. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.
c. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
e. Additional ,XY-150 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency



High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150 0High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150 1High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150 2High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150 3High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150 4
