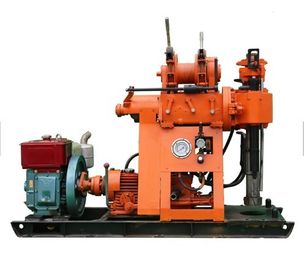

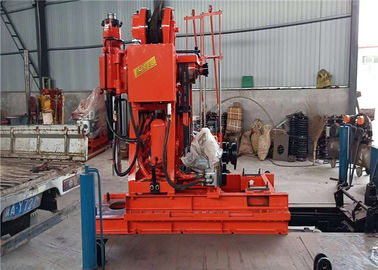

Portable borehole core drilling machine water well drilling rig
Roducts Description
The XY-2 Kilometer is a lightweight shallow hole rig with oil pressure feed. Suitable for census exploration, geophysical exploration, road and building exploration, and small well drilling.
Parameter:
| Drilling depth |
600 |
| Drilling angle |
0-360 |
| Vertical shaft stroke mm |
600 |
| Through hole diameter mm |
65 |
| Through hole diameter KN |
60 |
| Vertical shaft maximum pressure |
20KN |
| Max. pulling force KN |
70 |
| Max. torque KN |
300 |
| Winch max. lifting force |
30KN |
| Motor power |
22KW |
| Diesel engine(kw) |
33 |
| Dimension mm |
2150×900×1800 |
| Weight (without power) |
950KG |
Advantages of drilling rigs
1. It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2, using the ball card type clamping mechanism, can achieve non-stop bar, easy to operate, safe and reliable.
3, the handle is concentrated, easy to operate. It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole.
4. Compact structure, the rig, water pump and power machine (diesel or electric motor) are assembled on the same base, occupying a small area of the airport. Light weight, high decomposability and easy to move.
Second, the main features:
1. With automatic feeding into the body, high drilling efficiency.
2. The use of the ball card clamping mechanism instead of chuck, can be implemented without down the bar.
3. Handle centralized, easy to operate, safe and reliable.
4. Compact structure, rig, pumps and diesel engines are installed in the same chassis, the occupation of small venues.
5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
