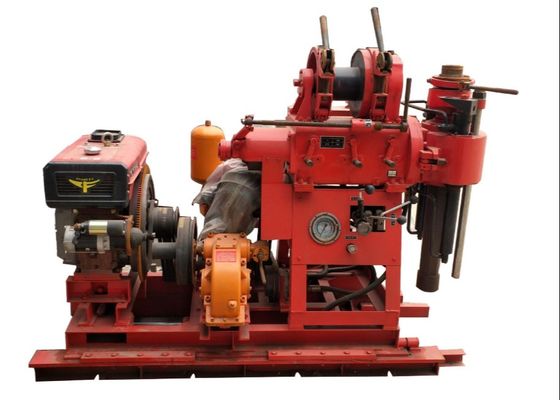

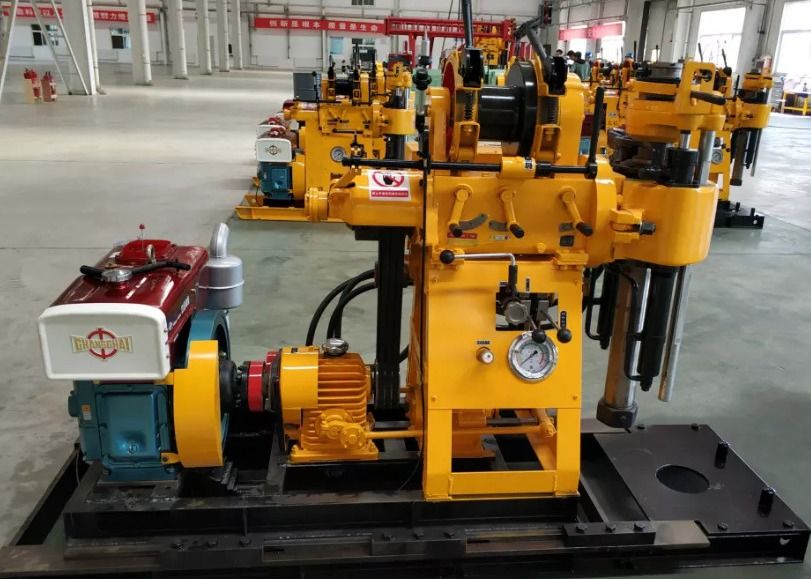

Small SPT Equipment 100m Soil Investigation Drilling Rig

Small SPT Equipment 100m Soil Investigation Drilling Rig
Small SPT Equipment 100m Soil Investigation Drilling Rig Small SPT Equipment 100m Soil Investigation Drilling Rig

Large Image :  Small SPT Equipment 100m Soil Investigation Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Condition: New
High Light:

100m Soil Investigation Drilling Rig

,

diesel power soil investigation rig

,

SPT Soil Investigation Drilling Rig

High Quality Small SPT Equipment 100m-200m Soil Investigation Drilling Rig





Product Description



1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.

4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas..



● Application of XY-1 small water well drilling rig



XY-1 small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or large, according to clients requirement, it can drill max. 100m deep. Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.



Specifications of XY-1 small water well drilling rig




Drilling depth
100m
Drill rod dia.
42mm
Initial hole dia.
110mm
Final hole dia.
75mm
Angle range
90°-75°
Dimensions(L×W×H)
1640×1030×1440 (mm)
Weight(without power unit)
500kg
Swivel Head
Spindle speed(3-speed)
142/285/570 r/min
Spindle stroke
450mm
upward displacement speed of idling vertical spindle
0.05m/s
Downward displacement speed of idling vertical spindle
0.067m/s
Spindle pull-down max
15KN
Spindle lifting capacity max
25KN
Hoist
Max .lifting capacity(1-speed,single rope)
10KN
Cable volume (number) of hoisting drum
27m
Wire rope dia.
9.3mm
Mud Pump
Model
Horizontal reciprocating single-acting piston pump
Displacement max


Equipped with diesel engine
95L/min
Equipped with motor
77L/mm
Allowable working pressure max
1.2Mpa
Continuous working pressure
0.7Mpa
Suction pipe dia
32mm
Discharge pipe dia
25mm
