Crawler Mounted 100m Small Water Well Drilling Rig

Crawler Mounted 100m Small Water Well Drilling Rig

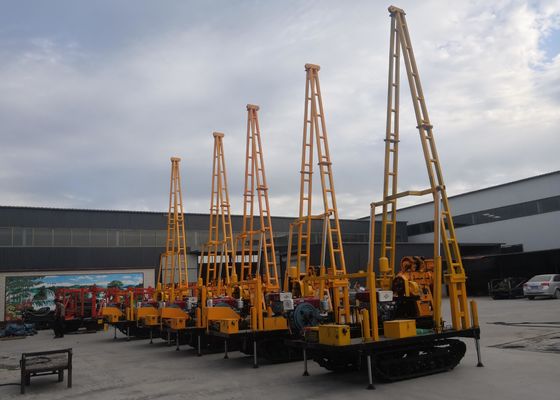

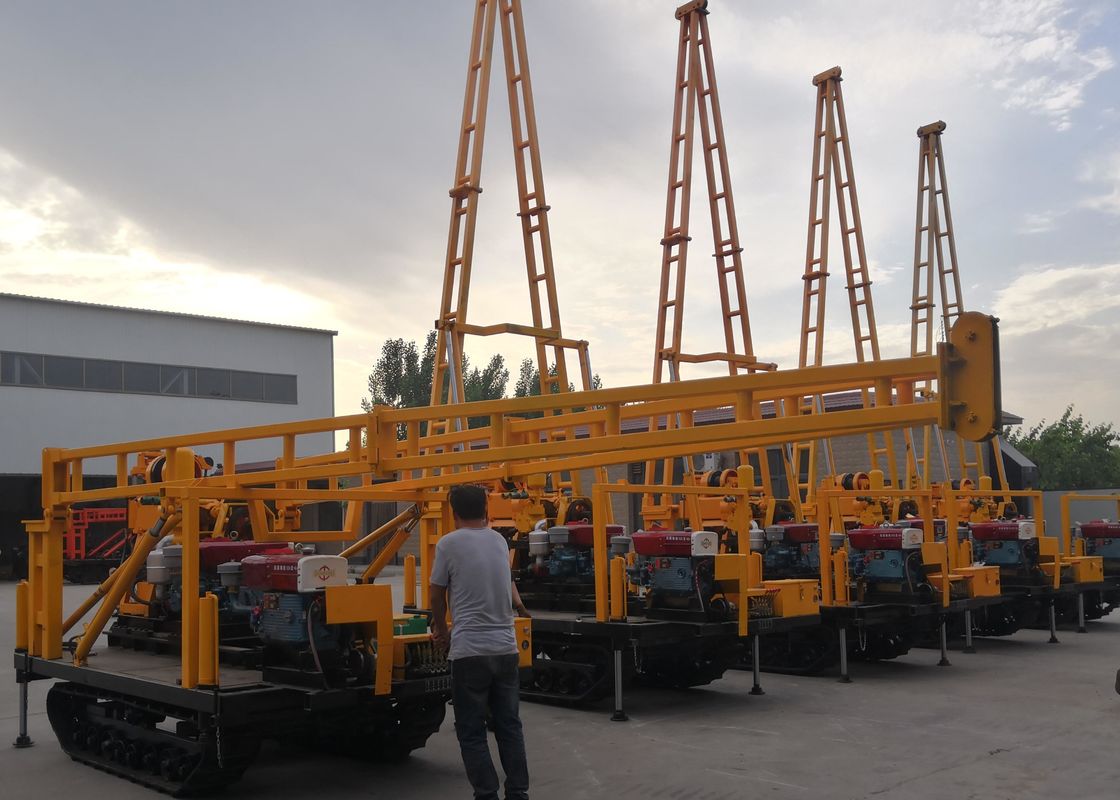

Crawler Mounted 100m Small Water Well Drilling Rig Crawler Mounted 100m Small Water Well Drilling Rig

Large Image :  Crawler Mounted 100m Small Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6800-18000/set
Packaging Details: wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Horizontal Directional Drilling Feature: Multifunctional
Voltage: 220/380 Application: Water Wells Drilling
Color: Red /yellow Name: Core Drilling Machine
Drill Rod Diameter: 42.50.89 Drilling Depth: 100m
Drilling Hole Inclination: 90 °-75° The Machine Weight: 525
High Light:

100m small water well drilling rig


Crawler Mounted Well Drilling Rig

Top Technology Crawler Mounted Small Water Well Drilling Rig Core Drilling Machine



Product Description:


A self propelled track/crawler drilling platform are introduced to make the transporting of the drilling rigs and accessories easy.
Various model can be mounted to the track/crawler, such as GY-100, GY-150 series, GY-200 series. Because GY-150H, GY-200-2A can slide on frame to give space to handle the drilling strings, this makes them very suitable model to be mounted on track/crawler. Also they are powerful rigs capable of drilling up to 150m/200m respectively.
Mud pump also can be mounted. Drilling rods, core barrels and other tools can put on the platform, it is very convenient to move the whole system.
The track/crawler can be sold alone, or together with the mounted rigs and mud pumps.

Features of drilling rig:


1,drilling rig has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.


Rig parameters:



2 Technical specification


XY-1 Type
Drill Swivel Head

Drilling depth



Spindle speed




Hole diameter


Max.110m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90°~75° Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/80 Model Gear oil pump
Rated pressure 12.5Mpa Working pressure 0.7-1.2Mpa
Flow speed 8ml/r
Rated speed 800-2500r/min
Hoist Power(diesel)
Max. lifting capacity 10KN Model(diesel engine ZS1105
Hoisting drum revolution 55,110,220(r/min) Rated power 12.1KW
Drum diameter 145mm Rated speed 2200 r/min
WEIGHT 500kgs
SIZE 1640*1030*1440mm
