Portable Small Geological 50m Exploration Drilling Rig

Name: Portable Small Geological 50m Exploration Drilling Rig
Brand: ShiTan
SKU: 50
Rating: 4.8 (158 reviews)

Large Image : Portable Small Geological 50m Exploration Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Portable Core Drilling Machine	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
High Light:	50m exploration drilling rig , 50m geological drilling rig , 42mm Exploration Drilling Rig

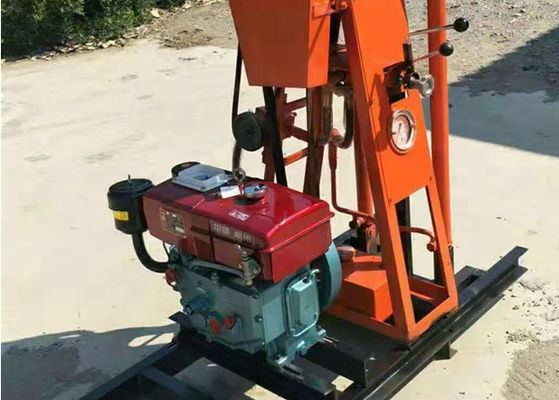

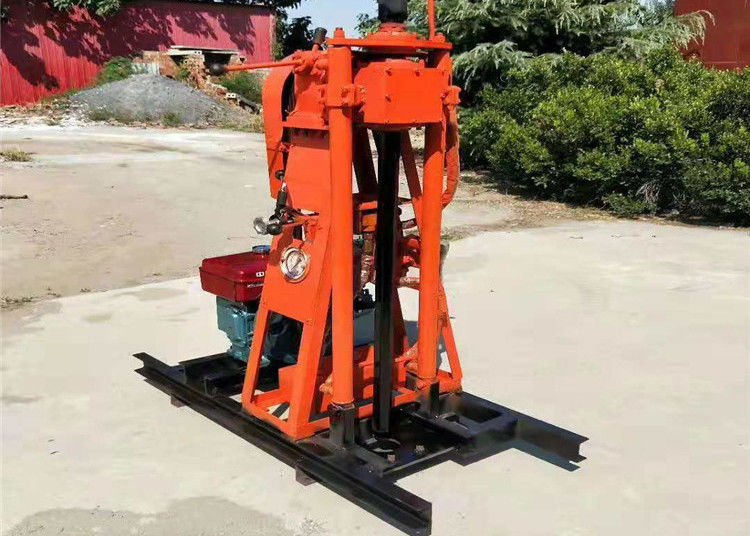

50m Portable Small Geological Exploration Drilling Rig Mini Coring Rig

Portable small geological exploration drilling rig introduce:

WLD-50 portable hydraulic core drilling rig is a small sampling drilling equipment widely used in plain, mountainous areas and inconvenient areas. It has the advantages of compact structure, small footprint, light weight and convenient movement. it is suitable for railway, water conservancy and other construction projects and geological sampling and survey of outdoor mountainous areas, geological core exploration, small grouting holes, blasting holes, etc. Drills such as diamonds, composite sheets and alloys can be selected depending on the formation.

Product advantages:

Vertical 50 drilling rig is a kind of high, medium and low speed drilling rig with oil pressure feeding. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of core sample. It is especially suitable for coring operation engineering and moving in special difficult terrain such as mountains, hills and rivers. It is suitable for engineering geological investigation of railway, hydropower, transportation, bridge, dam foundation and other buildings; geological core drilling and physical investigation; small grouting hole and blasting hole drilling; small water well drilling.

Product parameters:

Type	ST50 drilling rig
Drilling depth (m)	The max. 50 meter
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650
Reverse rotation speed	50-130
Power	5.7KW
Outsize	1180×680×1600mm
Weight (including Gasoline engine )	208kg

Portable Small Geological 50m Exploration Drilling Rig 0
