Rotary 150m Drill Rig Mining Used For Geological Drilling
Product Specifications
| Attribute |
Value |
| Name |
Water Well Drilling Rig |
| Type |
Rotary Drilling Rig |
| Power Type |
Diesel |
| Usage |
Water Well |
| Voltage |
380V |
| Power |
15KW |
| Weight |
1200KGS |
| Certification |
ISO9001 |
| Drill rod diameter |
42, 50mm |
| Condition |
New |
Product Overview

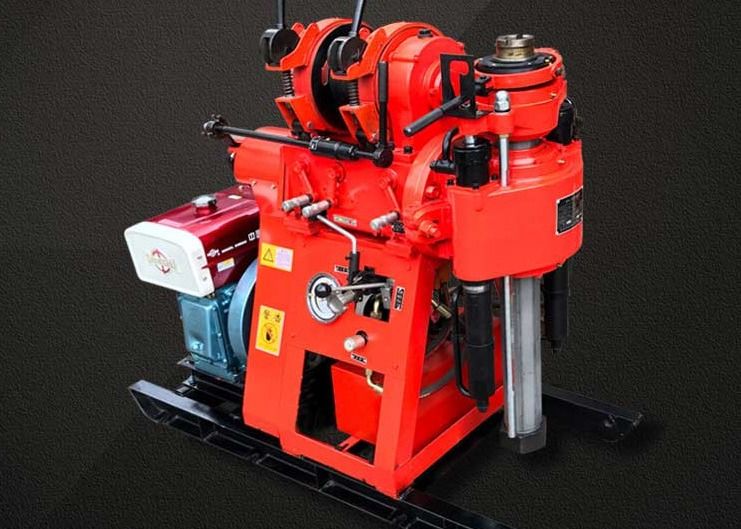

The XY-1A Water Well Drill Rig is designed on the basis of XY-1 drilling rig, featuring a high-speed portable design with oil pressure feeding mechanism.
Applications
- General survey and engineering geological exploration of solid ore deposits
- Inspection holes for various concrete structures
- Compatible with diamond, alloy and steel grain bits for different formations
- Rated drilling depth of 100m (75mm hole) or 180m (46mm hole)
- Maximum opening diameter of 150mm
Technical Specifications
Drilling depth:
Max. 150m
Hole diameter:
Max. 150m
Drill rod diameter:
42, 50mm
Angle range:
90-75°
Spindle speed:
1010,790,470,295,140 (r/min)
Spindle stroke:
450mm
Spindle pull-down:
Max. 15KN
Spindle lifting:
Max. 25KN
Key Features
- Oil pressure feeding mechanism improves drilling efficiency and reduces labor intensity
- Ball clamping mechanism and hexagonal active drill pipe enable rod reversing without stopping
- Low pressure gauge indicates pressure for better hole monitoring
- Centralized handle for easy operation
- Compact, lightweight design with strong decomposition for easy relocation
- Suitable for both plain and mountainous areas
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
