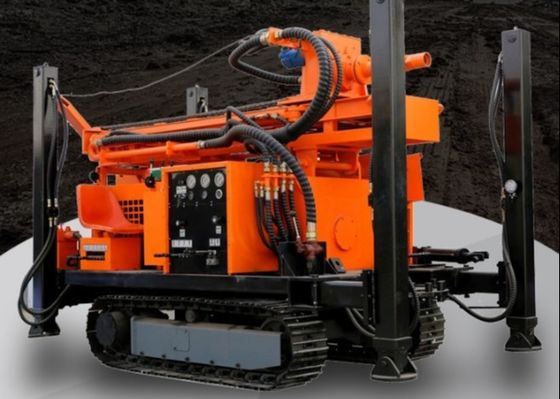

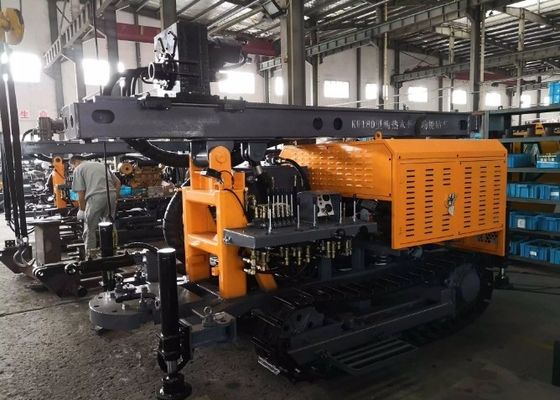

180m Crawler Type Air Drilling Rig Water Well Drilling Rig Machinery
Water Well Drilling Rig introduction
ST180 Water Well Drilling Rig mainly drilling rock,connect with air compressor . it has fast drilling speed . pneumatic dth drilling rig can drill 20-30m per hour . high drilling effective .
the engine it is Yuchai 85kw ,more powerful . pneumatic drilling rig it has 4 high hyraulic leg which can lifting 4.6m height can easy loading on the truck .
Pneuamtic drilling rig has steel crawler and rubber crawler . steel crawler mainly used in mountain area , rubber crawler mainly can protect the ground, not suitable mountain area use.
Pneuamtic drilling rig mast can customized max.height is 3m .normally the mast height is 3m .
Water Well Drilling Rig parameters
| Model | ST-180 |
| working wind pressure(Mpa) | 17-31 |
| Weight | 10~20 |
| Hole diameter(mm) | 4500kg |
| Cost effective drilling depth(m) | 180m |
| Feeding stroke(mm) | 3000 |
| Length of drill pipe(mm) | 3m |
| Diameter of drill pipe(mm) | Φ76 |
| Maximum hoist capacity(N) | 35000 |
| Climb ability(°) | 30 |
| Walking speed(km/h) | 1~3 |
| Rotating speed(r/min) | 0-96 |
| Rotating torque(N.m) | 2100 |
Water Well Drilling Rig Service on sale :
1,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
2,Test every machine and inspect the machine seriously . Training of equipment maintenance and operating personally,Debugging of equipment until everything is functional;
3,Delivery:If ship by sea .after delivery to seaport .Will inform with the shipping time and arrival time . Finally, send all original documents to help you clearance by Expres
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.
After-sale Service
1, Free insurance for goods
2, 24 hours online technical support to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
3. To provide one year warranty and lifetime maintenance for all products.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
