GK200 Soil Testing Core Drilling Equipment Geological Drilling Rig Machine
Geological Drilling Rig Machine Introduction

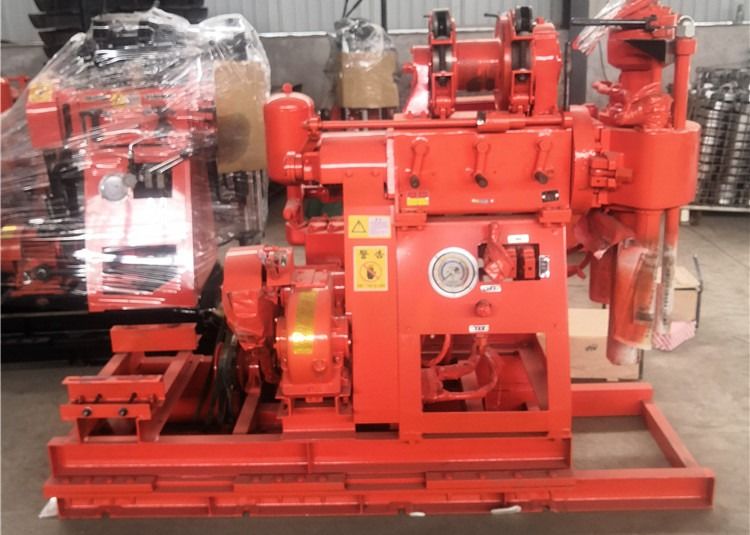

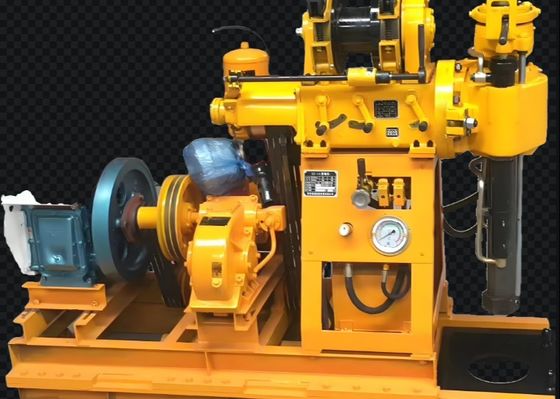

GK200 Soil Testing Core Drilling Equipment Geological Drilling Rig Machine is widely utilized and featured in high power and hoisting load, large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
Geological Drilling Rig Machine Tech parameter
| Gk200 |
| Drill |
Swivel Head |
|
Drilling Depth
|
Max.200m |
Spindle speed
|
(4-speed)
115 230 505 1010r/m
|
|
Hole diameter
|
Max.300m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-20/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.2Mpa |
| Flow speed |
20ml/r |
|
|
| Rated speed |
2000r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
20KN |
Model(diesel engine |
ZS1115 |
| Hoisting drum revolution |
20.39.85.170r/m |
Rated power |
16.2KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1730*860*1360mm |
Geological Drilling Rig Machine advantages
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
