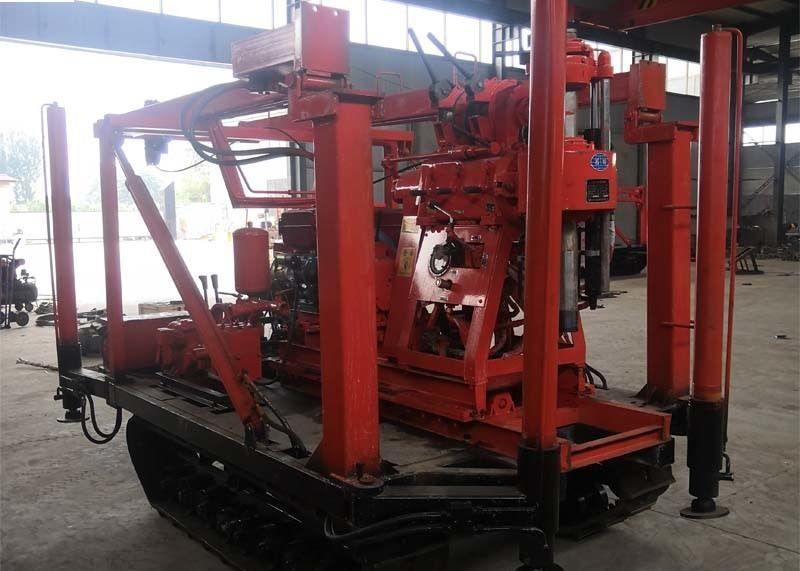

Water Well Core Drilling Rig ,Geological Exploration Drilling Rig
Features of speed diamond core drilling rig for sale:
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.
Technical parameters of speed diamond core drilling rig for sale:
| Drilling rigs |
| Drilling depth |
100, 180m |
| Hole termination diameter |
110, 75mm |
| Holing diameter |
150mm |
| Drill rod diameter |
42, 50mm |
| Drill dip angle |
90°~75° |
| Borehole overall size (L*W*H) |
1433*697*1274m |
| Drill weight (power engine excluded) |
420KG |
| Drill overall size (L*W*H) |
1620*970*1560m |
| Drill weight (power engine excluded) |
620KG |
| Drill overall size (L*W*H) |
1700*780*1274m |
| Drill weight (power engine excluded) |
490KG |
| Gyrator |
| Vertical shaft rotation speed |
664, 128, 287, 557 r/min |
| Vertical shaft travel |
450mm |
| Vertical shaft max. feeding pressure |
15KN |
| Vertical shaft max. hoisting ability |
25KN |
| Windlass |
| Single line max. hoisting ability |
15KN |
| Drum rotation speed |
121, 76, 36r/min |
| Drum peripheral speed (second floor) |
0.166, 0.331, 0.733, 1.465m/s |
| Drum diameter |
140mm |
| Steel wire line diameter |
9.3mm |
| Oil pump |
| Hydraulic pump pressure |
1.2Mpa |
| Outflow |
8ml/r |
| Rating rotation speed |
1500r/min |
| Power |
|
| Diesel engine model |
s1105 |
| Rating rotation speed |
2200r/min |
| Rating power |
15KW |
| Rating rotation speed |
1460r/min |
Characteristics of drilling rig:
1. With hydraulic automatic feeding mechanism to improve drilling efficiency;
2. Adopting the autumn card blessing mechanism instead of the chuck, it can realize the non-stop bar and easy to operate;
3. Equipped with a hole bottom pressure gauge to facilitate the understanding of the inside of the hole;
4. Compact structure, concentrated handle, small footprint, light weight, strong decomposability, easy to handle.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
