350 Meters Depth ISO Hydraulic Crawler Drilling Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

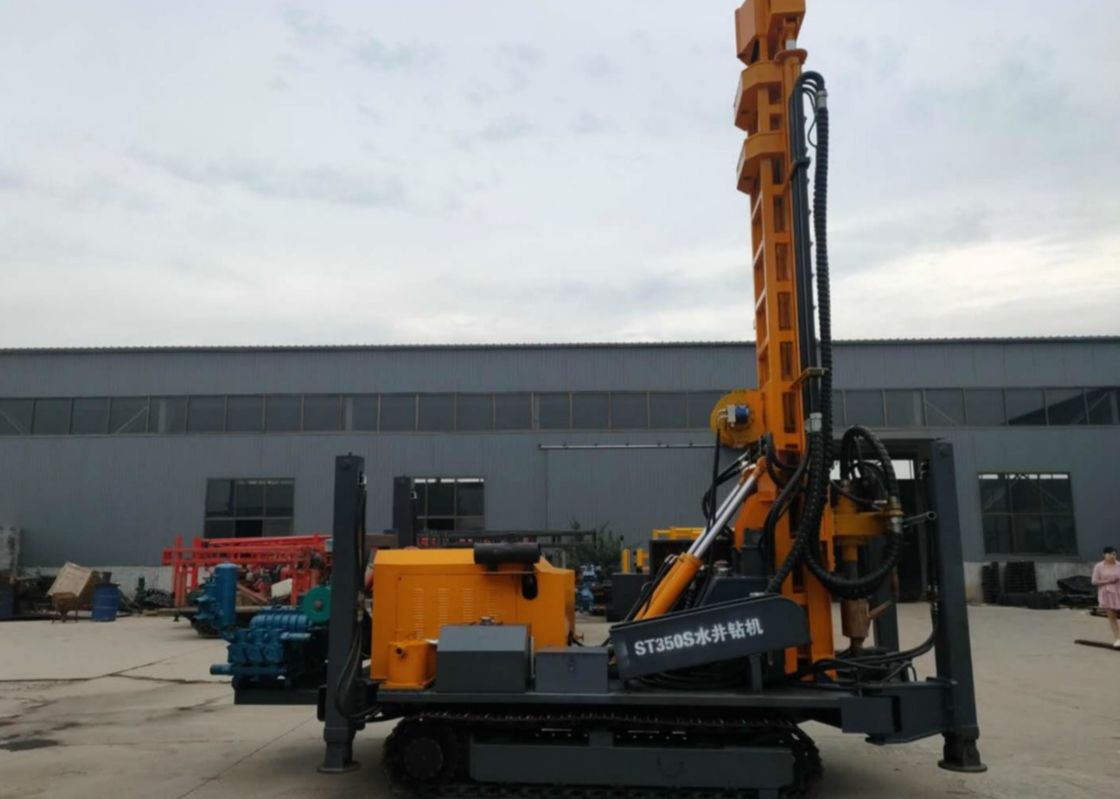

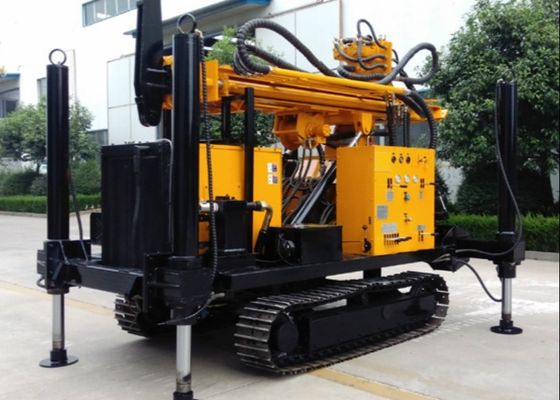

350 Meters Depth ISO Hydraulic Crawler Drilling Machine

350 Meters Depth ISO Hydraulic Crawler Drilling Machine
350 Meters Depth ISO Hydraulic Crawler Drilling Machine
video play

Large Image :  350 Meters Depth ISO Hydraulic Crawler Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: ST-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Certification: ISO Product Name: ST 350 Meters Depth 8.9 T High Drilling Efficiency Crawler Truck Mounted Drilling Rig Equipment
Model: Truck-mounted Drilling Rig Machine Type: Drilling Equipment
Hole Diameter: Customized Drilling Depths: 350meters
Condition: New Weight: 8.9 T
Warranty: 12 Months Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min After Sale Service: Video Support
High Light:

350m hydraulic crawler drilling machine

,

350m depth crawler drilling machine

,

ISO Hydraulic Crawler Drilling Machine

ST 350 Meters Depth 8.9T High Drilling Efficiency Crawler Truck Mounted Drilling Rig Equipment





ST 350 Crawler Truck Mounted Drilling Rig Equipment Product Description



This drilling rig machine can serve the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.



ST 350 Crawler Truck Mounted Drilling Rig Equipment Product Parameter



Type
Rotary Drilling Rig
Power Type Diesel
Place of Origin China
Brand Name SHITAN
Usage Ore
Dimension(L*W*H) 6400MM*2250MM*2700MM
Weight 8.9 T
Certification ISO9000
Warranty 1 YEAR
Marketing Type New Product 2020
Drilling diameter 152mm-305mm
Depth 25M
Rotary speed 0-90rpm
DTH K40
Drilling Rods 76*2m+76*3m
Air consumption 13-20m3/min
taavelling speed
0-2.5km/h



ST 350 Crawler Truck Mounted Drilling Rig Equipment Advantages



1, It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.

2, This machine can drill in different stratum, The maximum bore diameter can be 350mm.

3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.

6, Two gears rotation and feeding speed makes it work in soil and rock layers.



Main Attentions For Using the ST 350 Crawler Truck Mounted Drilling Rig Equipment



1. Operators must receive technical training, understand the structure principle and working performance of DTH, be familiar with the safe operation rules and maintenance rules of DTH, and pass the examination before they can operate alone.

2. the operation personnel should wear work clothes, wear a helmet, lesbians should be braid into the hat.

3. When blasting, the equipment should be retreated to a safe distance and covered up for protection;

A thorough inspection should be carried out after the shooting.

4. In case of strong wind and freezing above 6, do not go on the slide frame.If necessary, you must wear a seat belt.It is strictly prohibited to ride on the slewing mechanism or slide frame.

5. If the machine is shut down for a long time, the impacter should be put out of the hole to avoid the hole collapse blocking the drilling tool.

6. When someone is working at the orifice, it is forbidden to supply air to the impactor.When disassembling the drill bit, the rotary and lifting mechanism should be closed to prevent injury.



350 Meters Depth ISO Hydraulic Crawler Drilling Machine 0350 Meters Depth ISO Hydraulic Crawler Drilling Machine 1
