Geological Exploration Rotary 15KW Coring Drill Rig

Geological Exploration Rotary 15KW Coring Drill Rig
Geological Exploration Rotary 15KW Coring Drill Rig Geological Exploration Rotary 15KW Coring Drill Rig

Large Image :  Geological Exploration Rotary 15KW Coring Drill Rig

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Name: Geological Drilling Rig Machine
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Other Name: Drill Rig Drill Rod Diameter: 42, 50,89
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
High Light:

Geological Exploration Coring Drill Rig

,

Rotary Coring Drill Rig

,

15KW Coring Drill Rig

Gk200 Core Drill Geological Exploration Coring Drill Water Well Drilling





Spt Mounted Mine Core Drill Rig Machine for Geological Exploration



XY-200 Drilling Rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.



Geological Drilling Rig Machine parameters



Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
                                                         Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50


                                                        Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460



Core Drilling Rig  characteristic



1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.

2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.

3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.

4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.



FAQ

Q1: Are you factory or trade company
A1: We are factory. And we have ourselves trading company.

Q2: How long is your air compressor machine warranty?
A2: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.

Q4: What about the voltage of products? Can they be customized?
A4: Yes, of course. The voltage can be customized according to your requirement.

Q5: Which payment term can you accept?
A5: 30% T/T in advanced, 70% T/T against the B/L copy.

Q6: How long will you take to arrange production?
A6: 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8.What about the maintenance?
A8: First maintenance need to be done after 500 Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.



Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.

Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

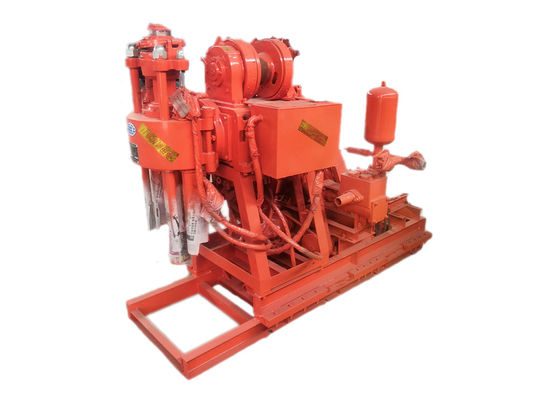

Geological Exploration Rotary 15KW Coring Drill Rig 0

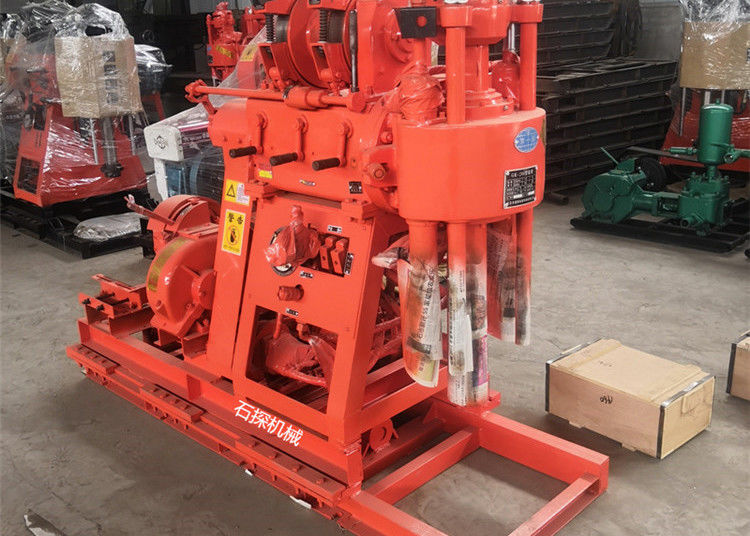

Geological Exploration Rotary 15KW Coring Drill Rig 1Geological Exploration Rotary 15KW Coring Drill Rig 2
