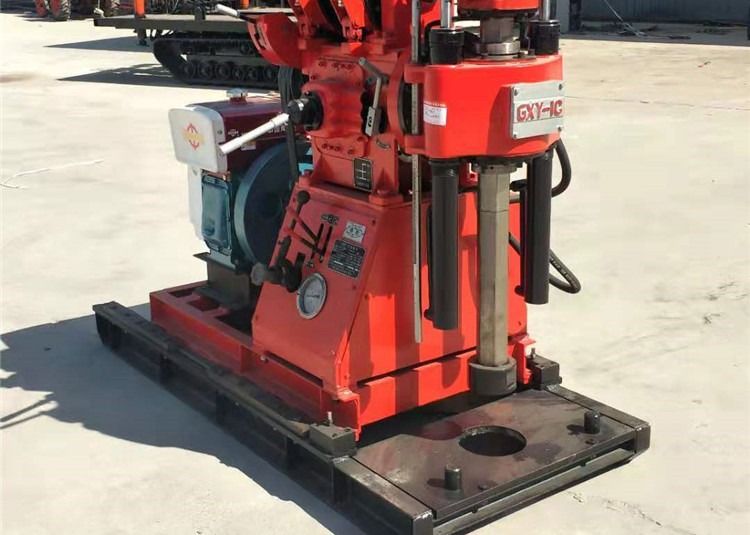

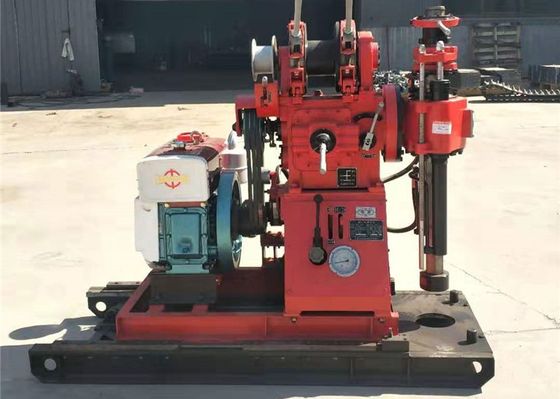

1. Model GXY-1 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.
3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in500kg, it can be moved easily especially in mountain area.
| Type |
GXY-1 |
| Hole depth |
150m |
| Hole diameter |
110mm |
| Final hole diameter |
75mm |
| Diameter of drill rods |
Φ42/50mm |
| Drilling angle |
90°-75° |
| Dimension(L*W*H) |
1640*1030*1440mm |
| Weight(without power unit) |
500KG |
| Rotary head |
Direct rotary speed |
142;285;570 r/min |
| Feeding stroke |
450mm |
| Lifting capacity |
25kN |
| Feeding capacity |
15kN |
| Max. Torque |
1200N.m |
| Hoist |
Running speed of drum |
55;110;220 r/min |
| Max. lifting capacity, single line |
10KN |
| Diameter of steel wire rope |
9.3mm |
| Capacity of drum |
27m |
| Mud pump(Horizontal Single-acting) |
Max. displacement |
77L/min |
| Max. pressure |
1.2Mpa |
| Stroke |
100m |
| Stroke per Minute |
96min |
| Diameter of liner |
80mm |
| Oil pump (YBC-12/80 Gear pump) |
Pressure |
8Mpa |
| Displacement |
8ml/r |
| Speed |
1500r/min |
| Power unit |
Electric motor Model Y132M-4 |
7.5KW,1440r/min |
| Diesel engine Model S1100 |
10.3KW,2200r/min |
The main features are as follows:
1. The rig has high input power, high output torque and strong drilling ability.
2. The high output speed of the drilling rig is mainly suitable for diamond core drilling and engineering geological investigation.
3. The drilling rig is equipped with a rotator, and the body is an integral casting, which improves the structural strength.
4. It is equipped with hydraulic feeding mechanism and hydraulic chuck clamping mechanism at the upper end of vertical shaft to improve drilling efficiency and reduce labor intensity.
5. In order to extend the life of the power head, the hydraulic control of the power head is used to move back to make the frame move away from the orifice.
