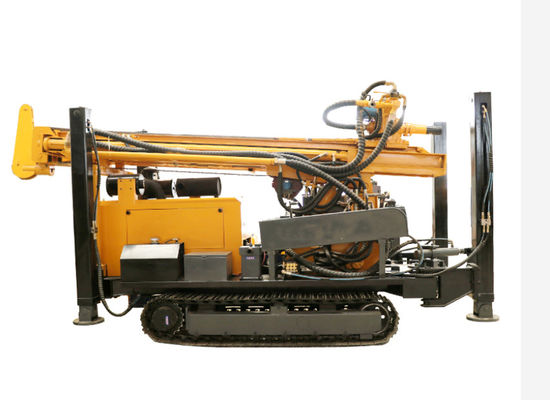

Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment

Large Image : Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Naked
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	1000year

Contact Now

Detailed Product Description

Type:	Crawler Mounted Drill Rig	Power Type:	Diesel
Driving Way:	Hydraulic Driving	Usage:	Geological Core Drilling
Weight::	6 T	Voltage:	380V
Model Number:	ST-260	Name:	Well Drilling Equipment
Air Pressure:	1.25-3.5Mpa	Weight Of The Rig:	4m×1.7m×2.2m
Highlight:	200m deep crawler mounted drilling rig , odm crawler mounted drilling rig , 200m deep crawler drill rig

Water Well 200m Deep Borehole Crawler Mounted DTH Machine Equipment

Product Specifications

Attribute	Value
Type	Crawler Mounted Drill Rig
Power Type	Diesel
Driving way	Hydraulic driving
Usage	Geological core drilling
Weight	6 T
Voltage	380V
Model Number	ST-260
Name	Well drilling equipment
Air pressure	1.25-3.5Mpa
Dimensions	4m×1.7m×2.2m

Product Overview

The ST200 series Hydraulic Water Well Drilling Rig is a lightweight, high-efficiency multifunctional drilling rig. It is widely applied in water wells, irrigation wells, and other boreholes, particularly suitable for mountain areas or rock foundations. The drilling rig incorporates advanced hydraulic technology, supporting high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.

Technical Parameters

Weight of whole machine	4.5T
Drilling caliber	140-254mm
Drilling depth	180m
One-time push length	3.3m
Walking speed	2.5km/h
Climbing ability	Max. 30°
Power of main machine	55kw
Working pressure	1.7-2.5mpa
Air consumption	17-31m³/min
Diameter of drill rod	76, 89mm
Length of drill rod	1.5, 2.0, 3.0m
Lifting force	12T
Rotation speed	45-65rpm
Rotation torque	3200-4600N.m
Dimensions	3800×1500×2200mm

Key Features

The ST260 new generation multi-purpose DTH deep water well drilling rig is our independent research and development product. These new generation DTH rigs are coupled to higher air power, leading to significantly faster drilling rates.

Adopting the newest model and advanced hydraulic technology, our water well drilling machines are primarily used for well drilling in resource exploration, hydrology wells, civil water wells, and agricultural irrigation projects. They can also be used for coal-mine gas exploitation, coalbed methane extraction, shallow layer shale gas drilling, terrestrial heat applications, and salvage work.
