Product Details:
Payment & Shipping Terms:
|
| Model Number: | ST-260 | Type: | Crawler Mounted Drill Rig |
|---|---|---|---|
| Power Type: | Diesel | Driving Way: | Hydraulic Driving |
| Usage: | Geological Core Drilling | Weight:: | 6 T |
| Voltage: | 380V | Name: | Well Drilling Equipment |
| Air Pressure: | 1.25-3.5Mpa | Weight Of The Rig: | 4m×1.7m×2.2m |
| High Light: | 200m deep crawler mounted drilling rig,odm crawler mounted drilling rig,200m deep crawler drill rig |
||

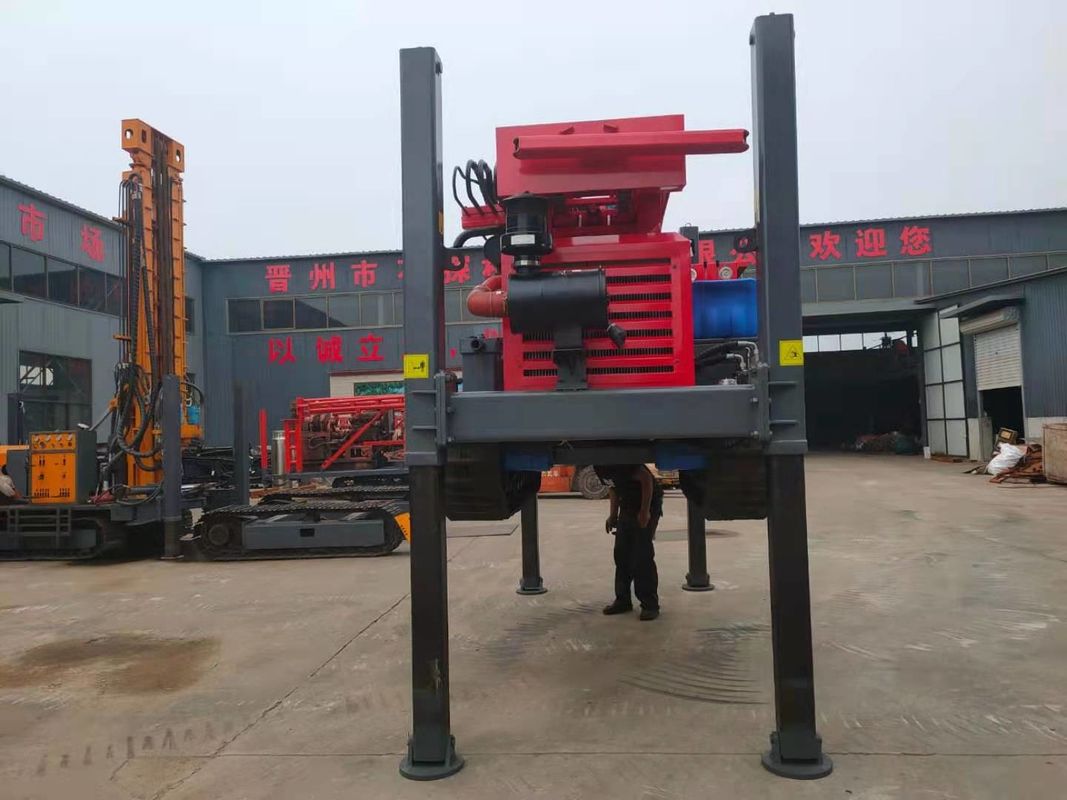

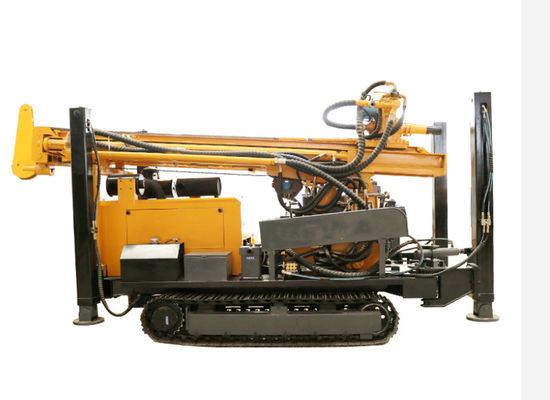

Water Well Drilling Rig Crawler Mounted 200m Deep Borehole Drilling Equipment
Introduction of 200 crawler type water well drilling rig:
ST200 series Hydraulic Water Well Drilling Rig is a type of light, high efficient and multifunctional drilling rig. It is widely applied in water well, irrigation well or other boreholes, especially good for mountain areas or rock foundations. The drilling rig adopts new hydraulic technology, supporting high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.
|
Weight of whole machine
|
4.5T
|
|
Drilling caliber
|
140-254mm
|
|
Drilling depth
|
180m
|
|
One-time push length
|
3.3m
|
|
Walking speed
|
2.5km/h
|
|
Climbing ability
|
Max. 30
|
|
Power of main machine
|
55kw
|
|
Working pressure
|
1.7-2.5mpa
|
|
Air consumption
|
17-31m3/min
|
|
Diameter of drill rod
|
76, 89mm
|
|
Length of drill rod
|
1.5, 2.0, 3.0m
|
|
Lifting force
|
12T
|
|
Rotation speed
|
45-65rpm
|
|
Rotation torque
|
3200-4600N.m
|
|
Dimension
|
3800*1500*2200mm
|
ST260 new generation multi-purpose DTH deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
