89kw 400m Hydraulic Water Well Drilling Dth Machine For Engineering

Large Image : 89kw 400m Hydraulic Water Well Drilling Dth Machine For Engineering

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST400

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	10000year

Contact Now

Detailed Product Description

Type:	Hydraulic Crawler Drilling Machine	Max. Drilling Depth:	400
Dimension(LWH):	6m×2m×2.5m	Power Type:	89
Feature:	High Drilling Efficiency	Drilling Diameter:	105-300mm
Rod Length:	6M	Lifting Force:	22T
Fast Lifting Speed:	24m/min	Warranty:	1 Year
Highlight:	400m hydraulic water well drilling rigs , 400m hydraulic well drilling rig , 89kw hydraulic water well drilling rigs

89kw 400m Hydraulic Water Well Drilling DTH Machine For Engineering

Product Specifications

Attribute	Value
Type	hydraulic crawler drilling machine
Max. Drilling depth	400m
Dimension (L×W×H)	6m×2m×2.5m
Power Type	89kw
Drilling diameter	105-300mm
Rod length	6M
Lifting force	22T
Fast lifting speed	24m/min
Warranty	1 Year

Product Overview

The 400M Hydraulic Well Drilling Rig is a water gas dual-purpose mechanical top drive drilling rig that integrates water drill and air drill capabilities. It effectively solves drilling challenges in various soil layers and hard rock formations, making it ideal for water well drilling and geological exploration projects.

Technical Parameters

Parameter	Value
Model	ST400
Drilling Diameter	105-300mm
Drilling Depth	400m
One-time Advance Length	3000/6000mm
Working Air Pressure	1.7-3.5Mpa
Air Consumption	17-35m³/min
Main Power	100KW/6 Cylinder
Rotation Speed	45-75rpm
Rotary Torque	9000-10000N.m
Total Weight	10T

Key Features

Advanced structure with easy maintenance and repair design
Wide speed range (14-500r/min) with output torque of 13428-250N.m
2-gear reverse speed for accident handling
3400mm travel mechanical power head for improved drilling efficiency
Dual oil pump system for efficient power use
Mechanical drive with hydraulic assistance for low power loss
Crawler chassis with 1.5m leg oil cylinder stroke for easy relocation
Expandable system with reserved functional interfaces

Operation Guide: Adding Drill Pipe

Stop propulsion, rotation, and cooling water when reaching drill pipe depth
Operate fast backward handle to retract chuck
Reverse gyrator while retreating feed oil cylinder
Operate clamping handle to grip drill pipe and open flow valve
Connect new drill pipe while rotator moves forward
Release gripper when threads engage to complete process

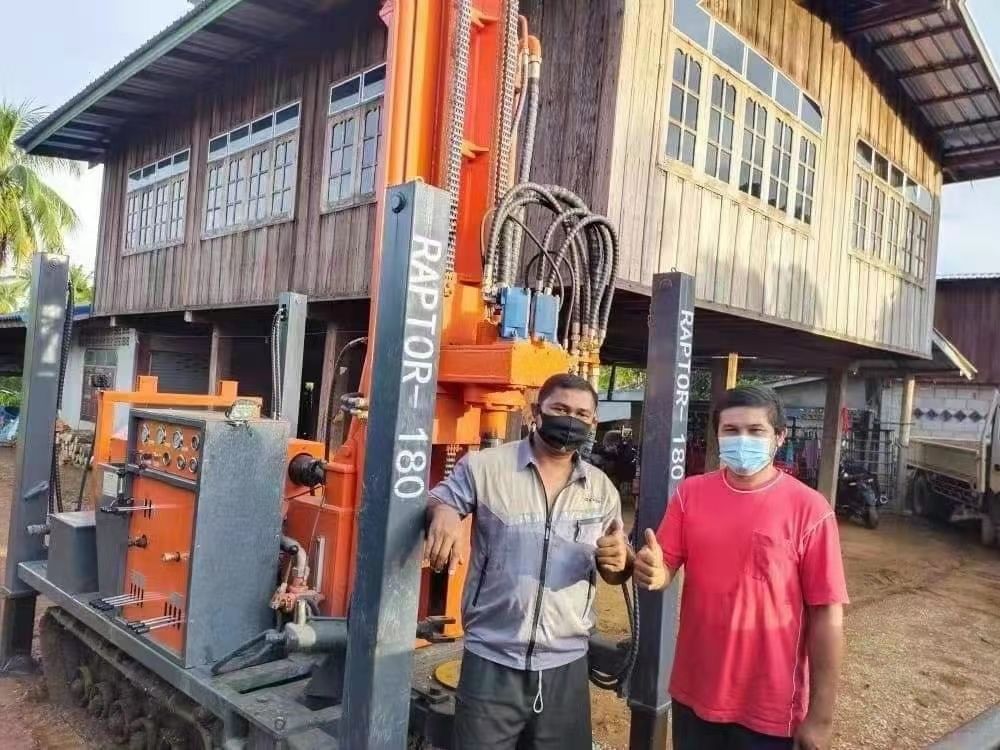

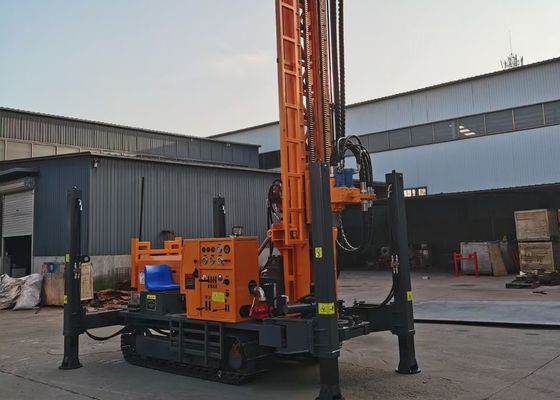

Product Images
