Small Portable Exploration 30mm Engineering Drilling Rig ST 30 Meters Depth

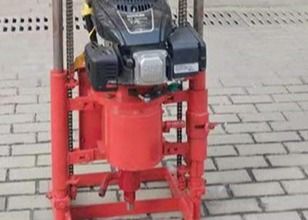

Large Image : Small Portable Exploration 30mm Engineering Drilling Rig ST 30 Meters Depth

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 30

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	standard exporting package
Delivery Time:	Within 3 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 30 Meters Depth Small Portable Exploration Engineering Drilling Rig	Color:	Customer Required
Power Type:	Diesel Or Motor	Usage:	Water Well,railways, Core Drilling
Warranty:	1 Year	Condition:	New
Drilling Depth:	30 Meters	Drilling Diameter:	30mm
After Sale Service:	Video Support
Highlight:	30mm engineering drilling rig , 30 meters depth engineering drilling rig , 30 meters depth exploration drilling rig

ST 30 Meters Depth Small Portable Exploration Engineering Drilling Rig

ST 30 Exploration Engineering Drilling Rig Description

It is mainly used s a kind of drilling machine mainly for drilling rocks. The machine can widely be used in large diameter hole drilling operations of small and medium-sized mines, road construction, water conservancy

ST 30 Exploration Engineering Drilling Rig Technical Parameter

Technical Datas		Unit	ST-30
Drilling depth		M	30 Meters
Drilling method			Air shock, mud drilling, auger
Drilling hole diameter	Air shock drilling	mm	70-90
Drilling hole diameter	Mud drilling	mm	75-90
Drill pipe (diameter × length)	Air shock drilling	mm	Ø60×1500
Drill pipe (diameter × length)	Mud drilling	mm	Ø60×1500
Rated torque		N·M	800-900
Drilling speed range		r/min	0-135
Add pressure		KN	5.5-6
Drilling speed rangeDrilling speed range		KN	12-16
Drilling tool maximum lifting speed		M/s	0.71-0.81
Engine power		Kw	35
Rotating speed		r/min	3600
flow		L/min	0-60
Work pressure		MPa	20
Air compressor unit	model		Fuel injection screw
	Air volume	M³/min	3.8
	Work pressure	MPa	0.8
System oil temperature		℃	15-80

ST 30 Exploration Engineering Drilling Rig Advatanges

1.1 Engineering geological investigation

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

ST 30 Exploration Engineering Drilling Rig Main Application

1. Geological prospecting survey

2. Debris flow, landslide and other disaster control survey

3. Railway, highway and water conservancy engineering survey
