350m Deep Full Hydraulic Crawler Water Well Drilling Rig Pneumatic

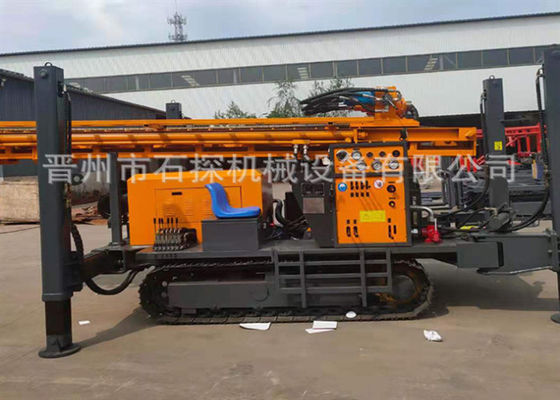

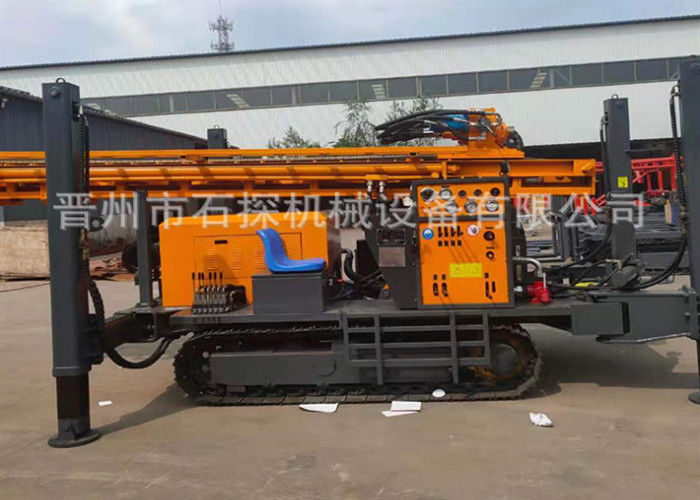

Large Image : 350m Deep Full Hydraulic Crawler Water Well Drilling Rig Pneumatic

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Type:	Crawler Mounted Drill Rig	Drilling Depth:	350M
Application:	Drilling Well,hammer For Drills	Air Pressure:	1.25-3.5Mpa
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Weight:	9800KG	Power:	92Kw
Usage:	Water Well	Hole Diameter:	140-305mm
Color:	Blue,Yellow	Name:	350m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price,Used Borehole Drilling Machine For Sale
Highlight:	350m crawler water well drilling rig , crawler water well drilling rig pneumatic , 350m deep pneumatic drilling rig

350m Deep Full Hydraulic Crawler Pneumatic Water Well Drilling Rig

Introduction of ST350 pneumatic drilling rig

ST350Series deep (water) well drilling rig adopts full hydraulic control, and the overhead power head drives the drilling tool to rotate, with high drilling efficiency. The whole machine has reasonable layout, adopts crawler or all ground chassis transportation, and has good mobility. It is suitable for all kinds of bad road conditions. It is widely used in the exploration and mining projects of hydrological wells, coalbed methane, shallow shale gas, geothermal and other resources, as well as coal mine gas drainage, emergency rescue and other fields. ST 350 well drilling rig has been successfully exported to Argentina. The top drive head spindle has large diameter, which is suitable for various drilling technologies, such as mud drilling, air drilling, air foam drilling, etc., to meet the drilling needs of different formations.

Parameters of 350 water well drilling rig

Technical Parameters of ST300 water well drilling rig
type	ST350
The weight	9.8T
Dimension	6m×2m×2.5m
The hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Crawler Mounted Drill Rig advantage

1. Power system, equipment that provides energy for the whole set of drilling rig; 2. Working system, equipment for working according to process requirements; 3. Transmission system, equipment for transmitting, conveying and distributing energy for the working unit; 4. Control system, control all systems and equipment, and coordinate and accurately work according to the process requirements; 5. Auxiliary system, equipment to assist the main system. Sealing lubrication of flat valve of water well drilling rig accessories lithium base grease shall be used for thrust bearing of flat valve of manual water well drilling rig accessories. The consumption of grease shall be checked after each maintenance. If deterioration, pollution or lack are found, it shall be replaced or supplemented immediately.

FAQ

1. Are you trading company or manufacturer?
We are professional trading company, and our factory mainly produce water well drilling rig, Our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.
2. How about your machine quality?
All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.
3. Do you have after-sale service?
Yes, we have professional technic after-sale service team which will offer you the best technical maintenance guidance. Engineers are available to be abroad for service.
4. What about the quality warranty?
We offer one-year quality warranty.
5.How long can you deliver the machine?
Generally, we can deliver the machine in 7 day
