St 200 72kw Pneumatic Drilling Rig Diesel Engine Customized

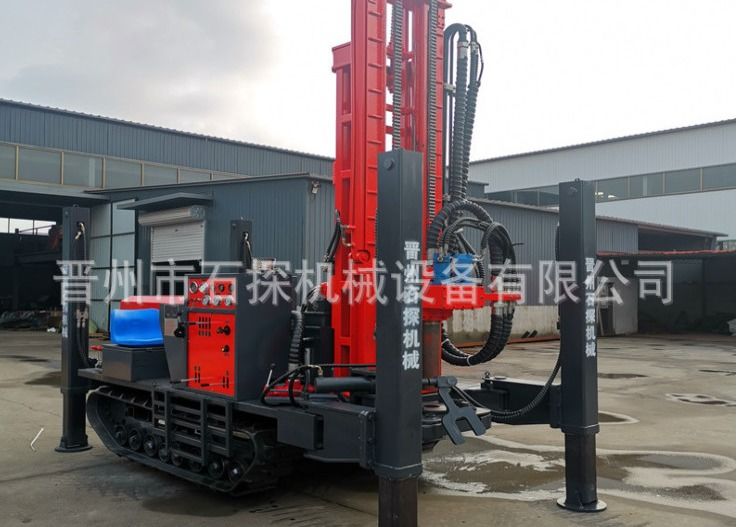

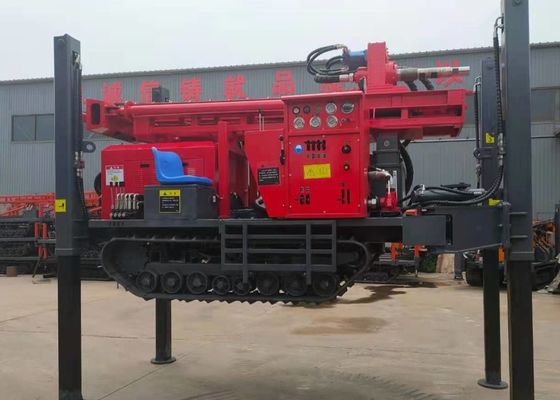

Large Image : St 200 72kw Pneumatic Drilling Rig Diesel Engine Customized

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 200 72kw Diesel Engine Customized Pneumatic Drilling Rig	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
Highlight:	200m deep pneumatic drilling rig , 72kw pneumatic drilling rig , diesel engine pneumatic drilling rig

ST 200 72kw Pneumatic Drilling Rig Diesel Engine Customized

Product Specifications

Attribute	Value
Product Name	ST 200 72kw Diesel Engine Customized Pneumatic Drilling Rig
Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months

Product Description

The ST 200 Pneumatic Drilling Rig is designed for industrial and agricultural water conservancy engineering applications. It excels in drilling rock wells, monitoring wells, and exploration wells, with particular effectiveness in geothermal heating hole drilling. The rig also meets project requirements for engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, and cornerstone drilling.

Technical Parameters

Model: ST 200

Type: Rotary Drilling Rig

Power Type: Diesel

Dimensions: 6400MM × 2250MM × 2700MM

Weight: 5800KG

Drilling Diameter: 90-152mm

Depth: 25M

Rotary Speed: 0-90rpm

Air Consumption: 13-20m³/min

Key Advantages

Enhanced Safety: Powered by compressed air for safer operation
High Efficiency: Unique air circuit layout with high-precision components for superior performance
Compact Design: Large power in small footprint for easy movement in confined spaces
Versatile Operation: Horizontal and vertical rotating devices enable drilling at various angles
Powerful Performance: Independent motor-driven propulsive force mechanism with multi-head worm and turbine drive

Primary Applications

Ideal for air conditioning hole drilling, household water wells, and small water conservancy projects. Its compact size allows access to small spaces, making it suitable for residential yards and agricultural applications.
