St 260 Pneumatic Drilling Rig Customized Depth And Hole Diameter

Large Image : St 260 Pneumatic Drilling Rig Customized Depth And Hole Diameter

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Product Name:	ST 260 Customized Depth And Hole Diameter Drilling Equipment,Pneumatic	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260m pneumatic drilling rig , customized depth pneumatic drilling rig , customized hole diameter pneumatic drilling rig

ST 260 Customized Depth And Hole Diameter Drilling Equipment,Pneumatic Drilling Rig

ST 260 Pneumatic Drilling Rig Introduction

The pneumatic drilling machine is a kind of fast deep water well drilling equipment using high-pressure air as the power source. It is suitable for industrial and civil drilling, geothermal drilling and other purposes, especially for water intake engineering in mountainous rock strata

ST 260 Pneumatic Drilling Rig Tech Data

ST 260 Pneumatic Drilling Rig Drilling Depth	260m
Dia.hole	φ105-260mm
Advance Length one time	6.6m
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Length of rod	1.5m,2m,3m,6m
Dia. Of rod	φ76, φ89,φ102,φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimension	5900x2000x2850mm
Application	Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

ST 260 Pneumatic Drilling Rig Main Advantages

1. The crawler has strong carrying capacity, can bear 2.5 tons of weight, large climbing capacity, simple operation and high drilling efficiency.

2. The four supporting feet of the crawler chassis are hydraulic supporting feet, and each supporting foot is controlled separately, so that the whole crawler platform can be stably fixed on the ground.

3. The crawler platform and drilling tower are welded with square tubes. The design structure has high strength and good rigidity.

Maintenance of crawler drill:

1. The service temperature of rubber track is generally between - 25 ° - + 55 °.

2. Chemicals, engine oil, salt of sea water will accelerate the aging of the track. Clean the track after use in such an environment.

3. The road surface with sharp protrusions (such as steel bars, sharp stones, etc.) will cause rubber track trauma. Try to avoid these sharp protrusions.

4. After drilling, the tower shall be retracted to avoid personal injury. Do not retract the tower when walking for convenience

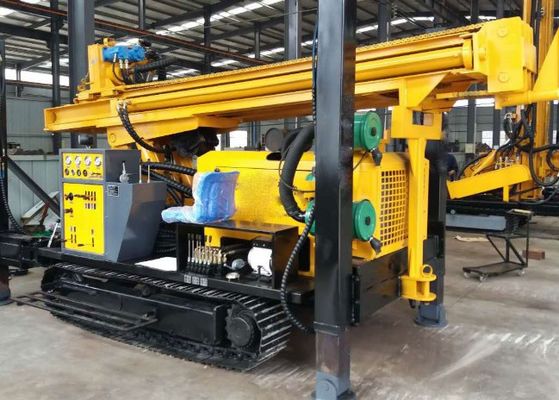

St 260 Pneumatic Drilling Rig Customized Depth And Hole Diameter 0

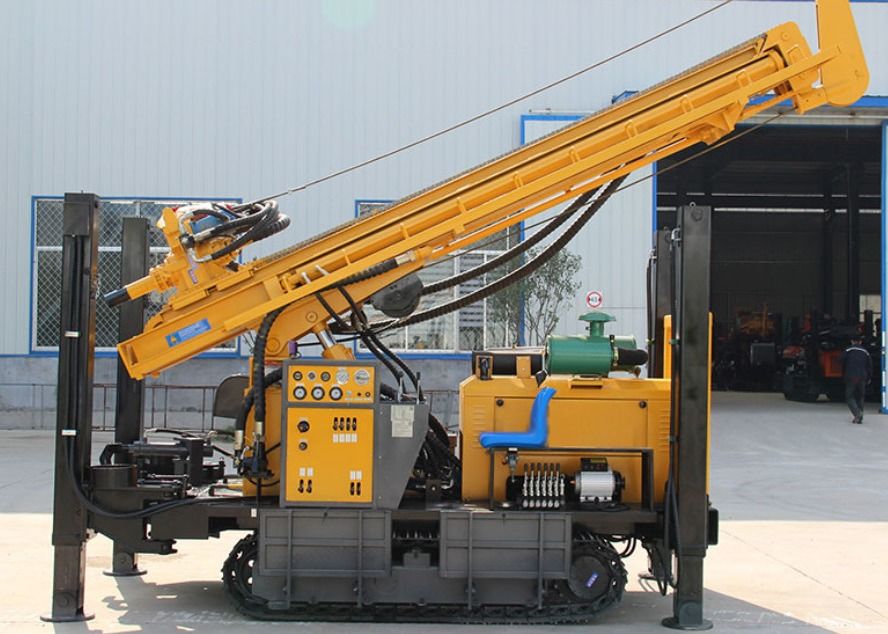

St 260 Pneumatic Drilling Rig Customized Depth And Hole Diameter 1
