Xy-1 Wagon Drilling Machine For Construction Engineering Drilling

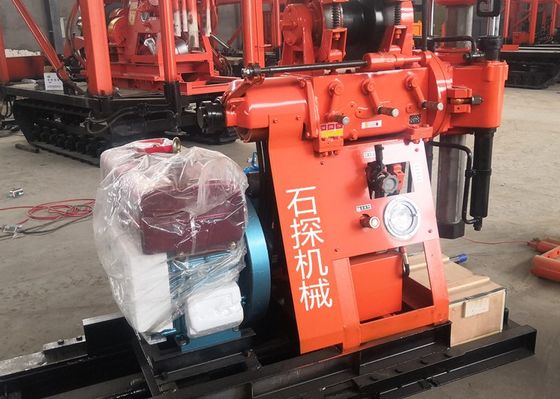

Large Image : Xy-1 Wagon Drilling Machine For Construction Engineering Drilling

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Geological Drilling Rig Machine	Power Type:	Diesel
Usage:	Water Well,railways, Core Drilling	Drilling Depth:	100m
Dimension(LWH):	164010301440mm	Drill Pipe Diameter:	42mm
Borehole Dip Angle:	90°~75	Spindle Speed:	142、285、570（r/min)
Model:	YBC-12/125	Rated Pressure:	12.5Mpa
Model(diesel Engine）:	1105	Rated Power:	18KW
Highlight:	xy-1 engineering drilling rig , 100m engineering drilling rig , multifunctional engineering drilling rig

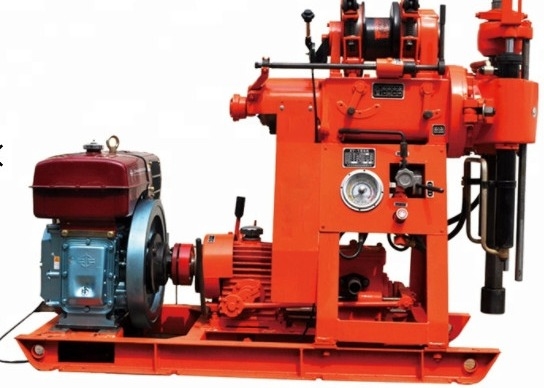

XY-1 Wagon Drilling Machine for Construction Engineering Drilling

Product Specifications

Attribute	Value
Type	Geological Drilling Rig Machine
Power Type	Diesel
Usage	Water well, railways, core drilling
Drilling depth	100m
Dimension (L×W×H)	1640×1030×1440mm
Drill pipe diameter	42mm
Borehole dip angle	90°~75°
Spindle speed	142, 285, 570 (r/min)
Model	YBC-12/125
Rated pressure	12.5Mpa
Diesel engine model	1105
Rated power	18KW

Applications

The XY-1 Core Drilling Rig is designed for:

General exploration and geological investigation
Geophysical prospecting
Road and construction surveys
Blast hole drilling operations

Technical Parameters

Component	Specification
Drilling diameter	110mm
Drilling depth	100m
Drill pipe diameter	42mm
Drilling angle	90°~75°
Equipment size (L×W×H)	1640×1030×1440mm
Rig weight (excluding engine)	500kg
Spindle speed (four gear)	142, 285, 570 (r/min)
Spindle travel	450mm
Spindle maximum feed pressure	15KN
Spindle maximum lifting force	25KN
Spindle maximum output torque	0.5KN•m

Key Features

Hydraulic automatic feeding device for elevated drilling efficiency
Spherical jaw holding mechanism replaces chuck for rod replacement without shutdown
Centralized handle controls for easy operation and safety
Compact structure with drilling machine, pump and diesel engine on common base frame
Lightweight design with strong decomposition for easy mobility in plains and mountains
