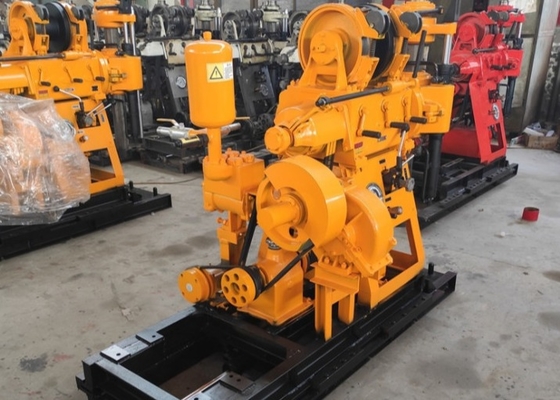

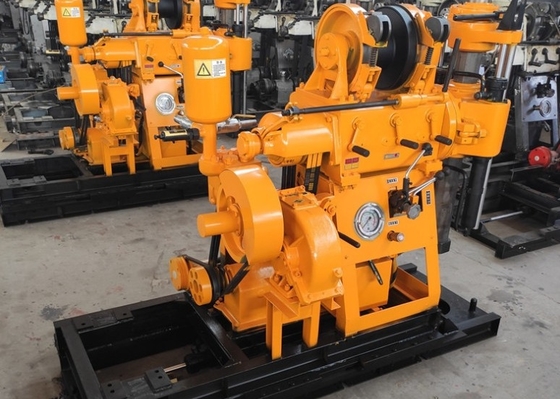

High Drilling Speed OEM Customized XY-1A Soil Test Drilling Machine
XY-1A Soil Test Drilling Machine Introdution
Xy-1a drilling rig is a high-speed portable drilling rig with oil pressure feed. In order to make the machine more widely applicable and meet the needs of different users,The drilling rig, water pump and diesel engine are installed on the same base,it is an advanced, robust, and efficient piece of equipment designed for a variety of soil testing applications. This drilling rig is engineered to provide precise and reliable core samples, making it an essential tool for geotechnical engineers, environmental consultants, and construction professionals who are involved in the assessment and analysis of soil properties for various projects. With a drilling hole diameter capability of 100mm, this machine is well-suited for obtaining clear and uncontaminated soil samples, ensuring accurate testing results.
XY-1A Soil Test Drilling Machine Tech Data
|
XY-1A Tech Data
|
|
Drill Detail Information
|
Swivel Head
|
|
Drilling depth
|
Max.150m
|
Spindle speed
|
1010,790,470,295,140(r/min)
|
|
Hole diameter
|
Max.150m
|
Spindle stroke
|
450kmm
|
|
Drill rod diameter
|
42.50mm
|
Spindle pull-down
|
Max.15KN
|
|
Angle range
|
90-75
|
Spindle lifting capacity
|
Max. 25KN
|
|
Oil pump
|
Water pump
|
|
Model
|
YBC-12/125
|
Model
|
Horizontal reciprocating single-acting piston pump
|
|
Rated pressure
|
12.5Mpa
|
Working pressure
|
Max. 1.25Mpa
|
|
Flow speed
|
8ml/r
|
|
|
|
Rated speed
|
1500r/min
|
|
|
|
Hoist
|
Power(diesel)
|
|
Max. lifting capacity
|
15KN
|
Model(diesel engine)
|
1105
|
|
Hoisting drum revolution
|
121,76,36(r/min)
|
Rated power
|
18KW
|
|
Drum diameter
|
140mm
|
Rated speed
|
2200r/m
|
|
WEIGHT
|
AROUND 600KG
|
|
SIZE
|
1620*970*1560mm
|
XY-1A Soil Test Drilling Machine Advantage
1. It has an oil pressure feeding mechanism, which improves the drilling efficiency and reduces the labor intensity of workers.
2. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high work efficiency, safety and reliability.
3. It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.
4. The handle is centralized and easy to operate.
5. The drilling rig has compact structure, small volume, light weight, easy disassembly and handling, and is suitable for working in plain and mountainous areas.
XY-1A Soil Test Drilling Machine Main Applications
1. The drilling rig is applicable to the general survey and exploration of solid deposits, engineering geological survey and other boreholes, as well as various concrete structure inspection holes.
2. According to different geological structures, diamond, alloy and steel bits can be selected for drilling.
3. When the final hole is 75mm and 46mm respectively, the rated drilling depth is 100m and 180m respectively. The maximum depth shall not exceed 110% of each drilling depth, and the allowable opening diameter is 150mm.
