OEM Geotech Drill Rig Xy-1a 150 Meters Depth Large Diameter

Large Image : OEM Geotech Drill Rig Xy-1a 150 Meters Depth Large Diameter

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Product Name:	XY-1A Soil Test Drilling Machine	Drilling Depth:	150 Meters
Drill Pipe Diameter:	42mm	Power Type:	Diesel Power
Machine Weight:	480kg	Application:	Water Well,railways, Core Drilling
Dimension(LWH):	16209701560mm	Borehole Dip Angle:	90°~75
Spindle Speed:	1010、790、470、295、140（r/min）	Rated Pressure:	12.5Mpa
Model(diesel Engine）:	1105	Rated Power:	18KW
WEIGHT:	AROUND 600KG
Highlight:	xy-1a soil testing drill rigs , soil test drilling machine xy-1a , oem soil test drilling machine

OEM Geotech Drill Rig XY-1A 150 Meters Depth Large Diameter

Product Specifications

Attribute	Value
Product Name	XY-1A Soil Test Drilling Machine
Drilling Depth	150 meters
Drill pipe diameter	42mm
Power Type	Diesel Power
Machine Weight	480kg
Application	Water well, railways, core drilling
Dimension (L×W×H)	1620×970×1560mm
Borehole dip angle	90°~75
Spindle speed	1010, 790, 470, 295, 140 (r/min)
Rated pressure	12.5Mpa
Model (diesel engine)	1105
Rated power	18KW
Weight	Around 600kg

Product Overview

The XY-1A Soil Test Drilling Machine is a high-speed portable drilling rig with oil pressure feed. Designed for versatility, this advanced equipment combines the drilling rig, water pump, and diesel engine on a single base. Its robust construction and efficient operation make it ideal for obtaining precise core samples in various soil testing applications.

Technical Specifications

Component	Specification
Drilling Depth	Max. 150m
Hole Diameter	Max. 150mm
Drill Rod Diameter	42.50mm
Angle Range	90-75°
Spindle Speed	1010, 790, 470, 295, 140 (r/min)
Spindle Stroke	450mm
Spindle Pull-down	Max. 15KN
Spindle Lifting Capacity	Max. 25KN
Oil Pump Model	YBC-12/125
Water Pump Model	Horizontal reciprocating single-acting piston pump
Hoist Max. Lifting Capacity	15KN
Diesel Engine Model	1105
Rated Power	18KW

Key Features

Oil pressure feeding mechanism enhances drilling efficiency and reduces worker fatigue
Upper ball clamp clamping mechanism with hexagonal active drill pipe enables reverse rod operation without stopping
Hole bottom pressure gauge provides real-time monitoring of downhole conditions
Centralized handle design for easy operation
Compact, lightweight construction for easy transport and operation in various terrains

Applications

Solid deposit exploration and general geological surveys
Engineering geological investigations and concrete structure inspection
Compatible with diamond, alloy, and steel bits for different geological conditions
Maximum rated drilling depth of 100m (75mm hole) or 180m (46mm hole)

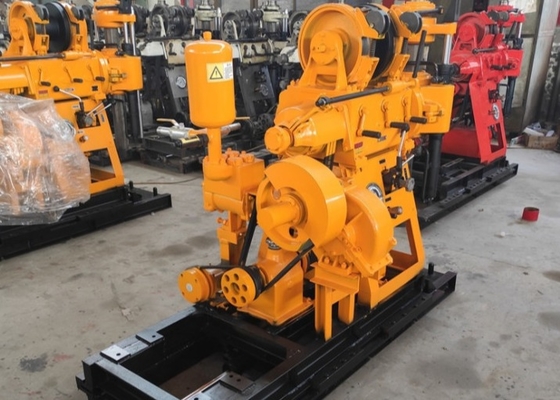

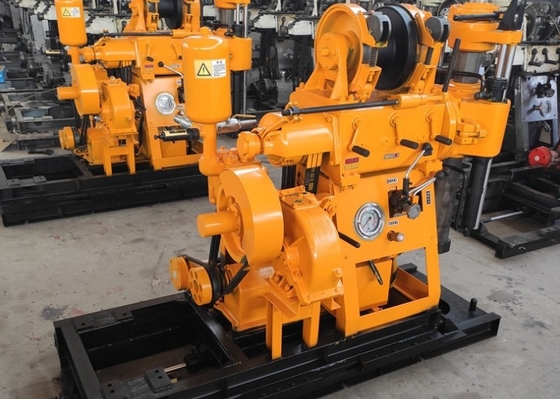

Product Images
