High Speed Customized GK 200 Factory Supply Soil Testing Drilling Machine
GK 200 Soil Testing Drilling Machine Introduction

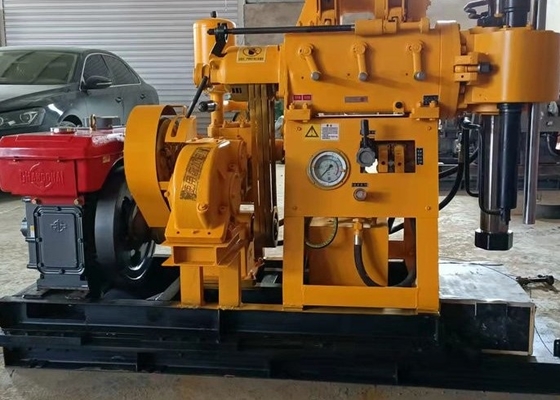

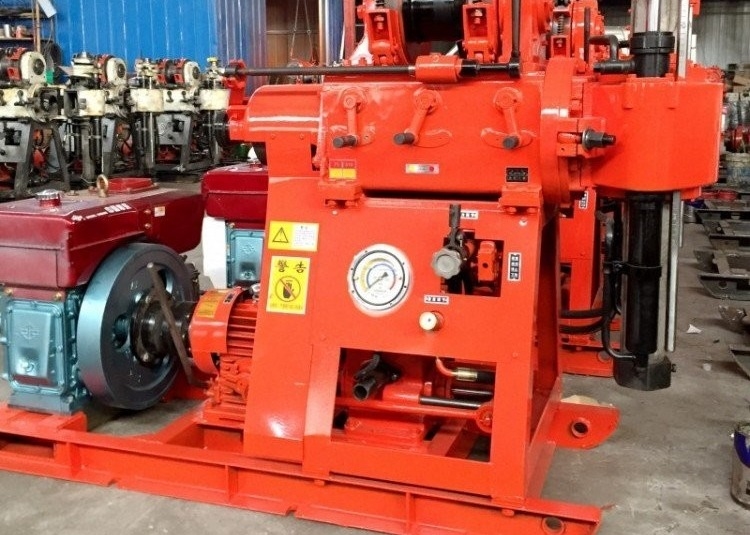

Gk200 drilling rig is designed by adding mud pump based on xy-1a drilling rig according to customer feedback. It is a high-speed portable drilling rig fed by hydraulic pressure.
GK 200 Soil Testing Drilling MachineTech Information
|
Drilling depth details
|
200m |
| Maximum open hole caliber |
300mm |
| End hole caliber |
75mm |
| Drill rod caliber |
60mm |
| Drilling angle |
90°~75° |
| Drill weight (No include power) |
975kg |
| Unity machine dimensions |
1433×697×1273m |
| Spindle |
| spindle speed |
64 128 287 557r/min |
| Spindle stroke |
450mm |
| Winch |
| Max.single line hoisting capacity |
2400kg |
| Single line lifting speed |
0.41,0.82,1.64m/s |
| steel wire rope caliber |
13m(35m) |
| Mud pump |
| Type |
Horizontal single urn twin-action |
| Displacement |
170/150L/min(diesel or electromotor)
|
| Diesle engine |
ZS1115 16.2kw 2200r/min |
| Electric motor |
Y160M—4 11kw 1440r/min |
GK 200 Soil Testing Drilling Machine Advatages
1) It has a hydraulic automatic feeding structure to improve the drilling efficiency and reduce the labor intensity of workers.
(2) The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable.
(3) It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
(4) The handle is centralized and easy to operate.
(5) The structure is compact. The drilling rig, water pump and diesel engine are installed on the same base, occupying a small area of the airport.
(6) Light weight and strong decomposability. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.
GK 200 Soil Testing Drilling Machine Application
(1) It is applicable to geological survey exploration, geophysical exploration and road construction exploration and drilling engineering.
(2) Diamond, alloy and composite bits can be selected for drilling according to different strata.
(3) It can drill into grade 2-9 sandy clay and bedrock.
(4) It can be used for drilling grouting holes, blasting holes and small water wells.
(5) The drilling depth and final hole diameter of the drilling rig vary according to the formation conditions
