Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter

Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter
Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter
video play

Large Image :  Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 5 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 set/year
Contact Now
Detailed Product Description
Product Name: Gk 200 Customized Exploration Drilling Rig Soil Testing Drilling Machine Warranty: 1 Year
Drilling Hole Diameter: Customized Drilling Depth: 200 Meters
Dimension(L*W*H): 1180×680×1600mm Drill Pipe Diameter: 42mm
Condition: New Weight: 200KG
Power Type: Diesel Color: Yellow,Red
Certification: ISO SGS, ISO, ISO9001 Packing: Wooden Box
Highlight:

200m soil testing drilling rig

,

soil testing drilling rig customized

,

42mm diameter soil testing drill rigs

Gk 200 Customized Exploration Drilling Rig Soil Testing Drilling Machine



Gk 200 Soil Testing Drilling Machine Introduction:

Gk200 drilling rig is designed by adding mud pump based on xy-1a drilling rig according to customer feedback. It is a high-speed portable drilling rig fed by hydraulic pressure.



Gk 200 Soil Testing Drilling Machine Tech Details:

Drilling depth 200m
Max open hole caliber 300mm
End hole caliber 75mm
Drilling Rod diameter 60mm
Drilling angle 90°~75°
Drill rig moving stroke 300mm
Power Engine Diesel engine 22HP
Spindle speed 64 128 287 557 r/min
Spindle stroke 450mm
Max.Single line lifting capacity 2400kg
Max.Single line lifting speed 0.41 0.82 1.64m/s
Wirerope caliber 13mm
Mud pump detail Diesel 170L/min
Work pressure 1.5Mpa
Water inlet pipe diameter 40mm
Water outlet pipe diameter 30mm


Gk 200 Soil Testing Drilling Machine Features:

1. The drill adopts mechanical transmission, with simple structure and easy maintenance and operation.
2. The drilling rig is equipped with water brake device, which can control the tripping speed, reduce the wear of drum, brake belt and other parts, the impact force of lifting and tripping.
3. Technical improvement is made on the original drilling rig. The shaft diameter device is added in the clutch part to enhance the power of the driving shaft, and the gear in the gearbox of the drilling rig is also improved in material and technology on the original basis.
4. It is applicable to deep hole drilling projects such as coalfield geology, hydrogeology, metal deposits, non-metal deposits and natural gas, with strong practicability, operability and universality. It can meet the process requirements of diamond drilling, cemented carbide drilling
5. The drilling rig can be equipped with motor or diesel engine for users to choose according to the operating environment or conditions.


Gk 200 Soil Testing Drilling Machine Applications:

It is mainly used for geological and mineral exploration holes, coalfield exploration holes and oil exploration holes with vertical and inclination within 45 °, and can also be used for water source and other similar engineering drilling holes. It is also used for geological core exploration, including coal field, petroleum, metallurgy, minerals, geology, hydrology, nonferrous metals and nuclear industry

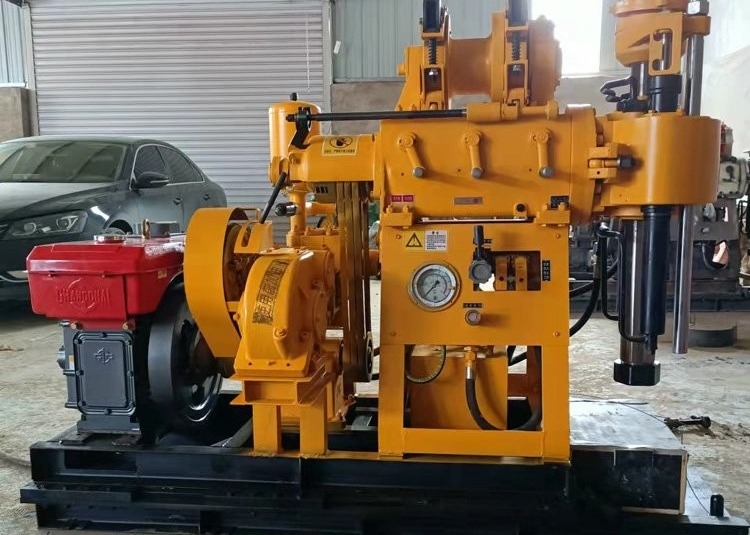

Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter 0

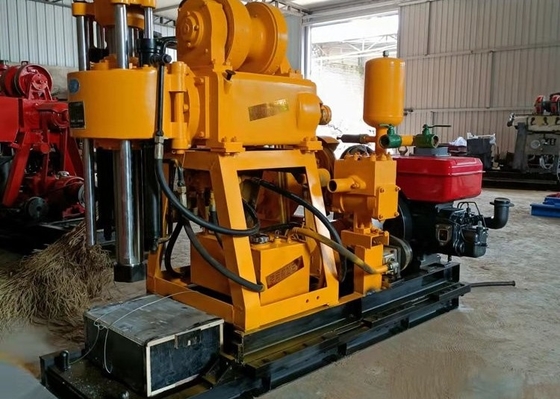

Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter 1Gk 200 Soil Testing Drilling Rig Customized 42mm Diameter 2























Tag:

soil testing drilling rig,

soil investigation machine,

soil sample testing equipment
