| Model Number: | XY-1A | Product Name: | Customized XY-1A 150 Meters Exploration Soil Testing Drilling Rig Machine |
|---|---|---|---|
| Power Type: | Diesel / 13.3kw | Drill Depth: | 150m |
| Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support |
| High Light: | xy-1a exploration drilling rig,150 meters exploration drilling rig,customized mineral exploration drilling rigs |
||

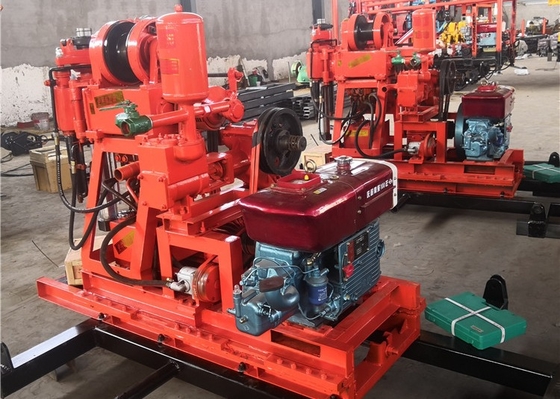

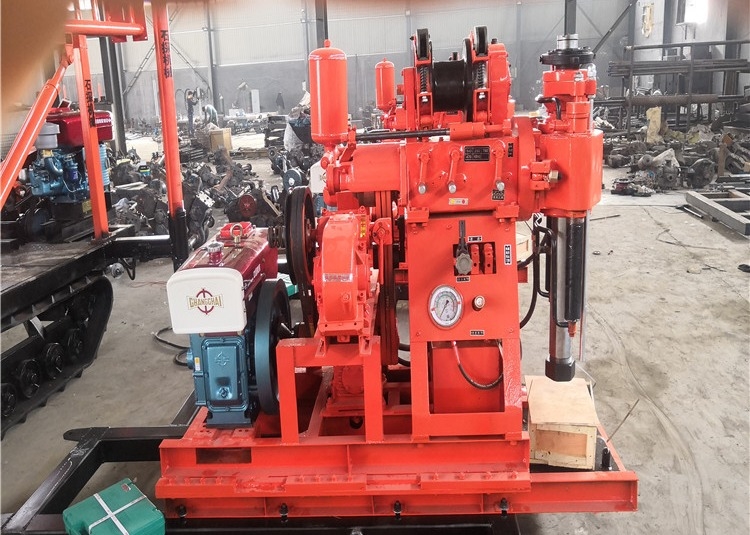

Customized XY-1A 150 Meters Exploration Soil Testing Drilling Rig Machine
XY-1A Soil Testing Drilling Rig Machine Introduction
Xy-1a drilling rig is designed on the basis of XY-1 drilling rig. It is a hydraulic feed portable drilling rig, which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.
XY-1A Soil Testing Drilling Rig Machine Parameters:
| Xy -1 A Drilling rig | Drilling hole diameter | mm | 150 |
| Drilling depth | m | 150 | |
| Drill pipe diameter | mm | 42 | |
| Borehole inclination | ° | 90°～75° | |
| Rig dimension(L×B×H) | mm | 1640×1030×1440 | |
| Drill weight(except engine) | kg | 500 | |
|
gyroscope
|
spindle speed(three block) | r/min | 142,285,570 |
| spindle travel | mm | 450 | |
| max moving speed | m/min | 3 | |
| vertical max feed force | KN | 15 | |
| vertical max lift | KN | 25 | |
| windlass | hoisting capacity(single speed rope) | KN | 10 |
| drum speed | r/min | 55,110,220 | |
| drum circumferential velocity | m/s | 0.42,0.84,1.68 | |
| drum diameter | mm | 145 | |
| wire rope diameter | mm | 9.3 | |
| rope weight | m | 27 | |
|
the diameter of the brake
|
mm | 230 | |
| brake band width | mm | 50 | |
| water pump | pump type | horizontal single cylinder double acting | |
| max displacement |
L/min |
95(77) | |
|
max allowable pressure
|
Mpa | 1.2 | |
| working pressure | Mpa | 1.2 | |
| cylinder diameter | mm | 80 | |
| oil pump | pump type | gear pump | |
| power | KW | 16.2 | |
| rated pressure | Mpa | 12.5 | |
| motor type | YBC-12/125 | ||
| displacement | L/r | 12 | |
| rated speed | r/min | 2000 |
XY-1A Soil Testing Drilling Rig Machine Advantages
1) The hydraulic feeding mechanism is adopted to reduce the physical labor intensity of workers.
(2) The ball clamp clamping mechanism is used to replace the chuck, which can realize the rod reversing without stopping, and the operation is convenient,.
(3) You can move the machine to give way to the orifice or open the gyrator to give way to the orifice.
(4) Light weight, strong decomposability, easy to move, suitable for construction in plain and mountainous areas.
XY-1A Soil Testing Drilling Rig Machine Applications
(1) The drilling rig is applicable to geological survey exploration, geophysical exploration, road and building foundation exploration, blasting hole drilling and other drilling projects.
(2) Alloy bit, steel particle bit and diamond bit can be selected for drilling according to different formations.
(3) It can drill into grade 2 ~ 9 sandy clay and weathered bedrock.
(4) The rated drilling depth is 100m, and the depth shall not exceed 120m. The rated opening diameter is 110mm, the allowable opening diameter is 130mm, and the final hole diameter is 75mm.
