| Product Name: | Geological Drilling Rig Machine | Warranty: | 1 Year |
|---|---|---|---|
| Drilling Hole Diameter: | Customized | Drilling Depth: | 200 Meters |
| Dimension(L*W*H): | 1180×680×1600mm | Drill Pipe Diameter: | 42mm |
| Condition: | New | Weight: | 200KG |
| Power Type: | Diesel | Color: | Yellow,Red |
| Certification: | ISO SGS, ISO, ISO9001 | Packing: | Wooden Box |
| Highlight: | 200m deep geological drill rig,customized hole geological drill rig,200m deep geological drilling rig |
||

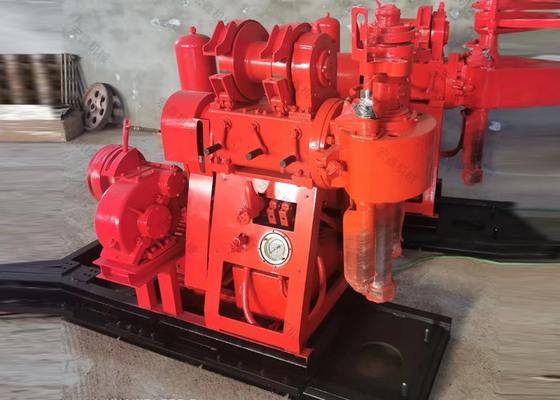

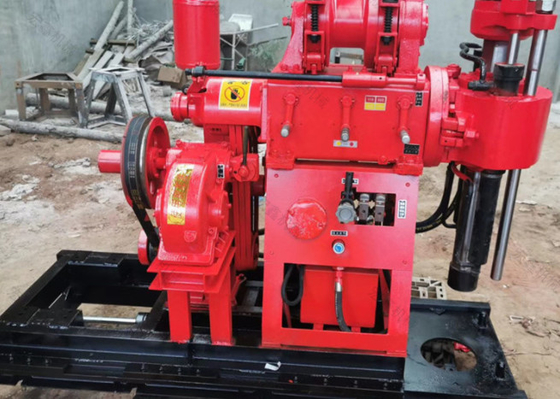

GK 200 Farming Coring Geological Drilling Rig Machine With 300 mm Hole Diameter
GK 200 Geological Drilling Rig Machine Description
GK 200 Geological Drilling Rig Machine Tech Details
| Drilling depth | 200m | |
| Max open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drilling Rod diameter | 60mm | |
| Drilling angle | 90°~75° | |
| Drill rig moving stroke | 300mm | |
| Power Engine | Diesel engine 22HP | |
| Spindle speed | 64 128 287 557 r/min | |
| Spindle stroke | 450mm | |
| Max.Single line lifting capacity | 2400kg | |
| Max.Single line lifting speed | 0.41 0.82 1.64m/s | |
| Wirerope caliber | 13mm | |
| Mud pump detail | Diesel 170L/min | |
| Work pressure | 1.5Mpa | |
| Water inlet pipe diameter | 40mm | |
| Water outlet pipe diameter | 30mm | |
GK 200 Geological Drilling Rig Machine Features:
GK 200 Geological Drilling Rig Machine Application:
(1) This rig applies to general survey exploration and, geo-exploration, road and building exploration, shothole drill and the drill of inspection hole of concrete structures.
(2) Selects different drill bit of diamond, alloy or steel grit according to the stratum.
(3) Drills in loams and base rock layers of two to nine grades.
How deep can you drill your own well?
Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area
