Product Name: | Geological Drilling Rig Machine | Model Number: | XY-1A |
---|---|---|---|
Drill Depth: | 150m | Power Type: | Diesel / 13.3kw |
Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support |
Highlight: | xy-1a geological drilling rig,portable exploration geological drilling rig,150 meters geological drill rig |

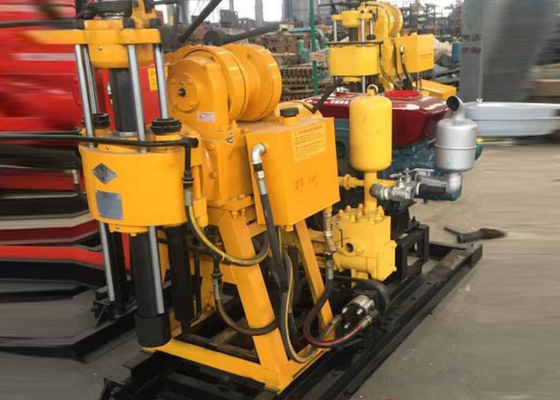

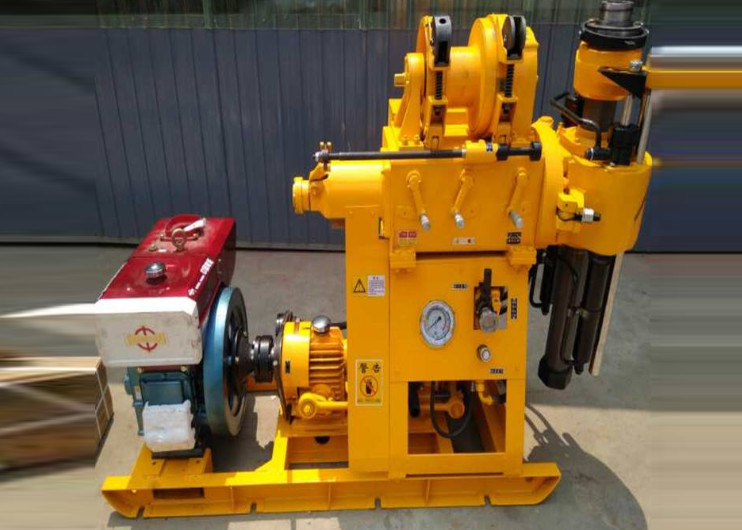

Portable Xy-1a 150 Meters Exploration Geological Drilling Rig Machine
Xy-1a 150 Meters Geological Drilling Rig Machine Introduction
Xy-1a drilling rig is designed on the basis of XY-1 drilling rig. It is a hydraulic feed portable drilling rig, which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.It is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. Diamond alloy and steel grain bits can be selected for drilling according to different strata.This machine is also designed for geotechnical drilling operations, making it perfect for drilling in difficult terrains. It is also a great choice for mining exploration operations, providing excellent performance and reliability.
Xy-1a 150 Meters Geological Drilling Rig Machine Parameters
Xy -1 A Drilling rig | Drilling hole diameter | mm | 150 |
Drilling depth | m | 150 | |
Drill pipe diameter | mm | 42 | |
Borehole inclination | ° | 90°~75° | |
Rig dimension(L×B×H) | mm | 1640×1030×1440 | |
Drill weight(except engine) | kg | 500 | |
gyroscope
|
spindle speed(three block) | r/min | 142,285,570 |
spindle travel | mm | 450 | |
max moving speed | m/min | 3 | |
vertical max feed force | KN | 15 | |
vertical max lift | KN | 25 | |
windlass | hoisting capacity(single speed rope) | KN | 10 |
drum speed | r/min | 55,110,220 | |
drum circumferential velocity | m/s | 0.42,0.84,1.68 | |
drum diameter | mm | 145 | |
wire rope diameter | mm | 9.3 | |
rope weight | m | 27 | |
the diameter of the brake
|
mm | 230 | |
brake band width | mm | 50 | |
water pump | pump type | horizontal single cylinder double acting | |
max displacement |
L/min |
95(77) | |
max allowable pressure
|
Mpa | 1.2 | |
working pressure | Mpa | 1.2 | |
cylinder diameter | mm | 80 | |
oil pump | pump type | gear pump | |
power | KW | 16.2 | |
rated pressure | Mpa | 12.5 | |
motor type | YBC-12/125 | ||
displacement | L/r | 12 | |
rated speed | r/min | 2000 |
Xy-1a 150 Meters Geological Drilling Rig Machine Main Advantage
(1) Easy operation and high efficiency with the hydraulic feeding
(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relit
(3) The pressure indicator of bottom hole can be observed and the well conditions controlled easily
(4) Close levers, convenient to operate, safe and reliable
(5) Compact size and light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.
(6) The octagon shape section spindle can give more torque.
Xy-1a 150 Meters Geological Drilling Rig Machine Applications Range
(1)Geological exploration, engineering geology investigation and kinds of survey holes in concrete structures.
(2)Diamond bits, hard metal bits and steel-shot bits could be selected to different layers.
(3)The rated drilling depth is 100m using dia. 75mm bit, and 180m using dia. 46mmbit. The drilling depth cannot exceed 110% of its capacity. The allowable maximum diameter of initial hole is 150mm.
