St 180 Meters Rubber Or Steel Crawler Pneumatic Drilling Rig For Water Well Borehole

Large Image : St 180 Meters Rubber Or Steel Crawler Pneumatic Drilling Rig For Water Well Borehole

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 180 Pneumatic Drilling Rig	Drilling Depths:	180 Meters
Drilling Hole Diameter:	105-300mm	Color:	Red Yellow Blue
Feature:	High Drilling Efficiency	Application:	Water Well Drilling
Power Type:	Diesel	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Place Of Origin:	Hebei,China	After Sale Service:	Video Support
Highlight:	180 meters pneumatic drill rig , 380 v pneumatic drill rig , rubber crawler mounted pneumatic drilling rig

ST 180 Meters Rubber or Steel Crawler Pneumatic Drilling Rig

Product Specifications

Attribute	Value
Product Name	ST 180 Pneumatic Drilling Rig
Drilling Depths	180 meters
Drilling hole diameter	105-300mm
Color	Red Yellow Blue
Feature	High Drilling Efficiency
Application	Water Well drilling
Power Type	Diesel
Warranty	1 Year
Voltage	220V/380V
Length of drill pipe	3m
Place of origin	Hebei, China
After sale service	Video Support

Product Overview

The ST 180 Pneumatic Drilling Rig is an advanced large pneumatic water borehole drilling machine capable of drilling holes up to 180 meters deep. Powered by an external air compressor, this rig is designed for water wells, geothermal wells, and shallow oil exploration.

Technical Specifications

Item NO.: ST-180

Weight: 4.5T

Dimensions: 3800×1550×2350mm

Hole diameter: 140-254mm

Drilling Depth: 180m

Once-time advance length: 3.3m

Walking speed: 2.5Km/h

Climbing angles (Max.): 30°

Air consumption: 17-31m³/min

Equipped capacitor: 55Kw

Swing speed: 45-65rpm

Swing torque: 3200-4600N.m

Drill pipe diameter: 76/89mm

Rig lifting force: 10T

Supporting Power: 29m³/min 23BAR AIR COMPRESSOR

Using air pressure: 1.7-2.5Mpa

Key Features

Pneumatic impact principle ensures fast drilling speed (20-40m per hour)
Rubber steel wire crawler for easy movement without damaging urban roads
High hydraulic outrigger for vehicle loading/unloading and rig leveling
High-power diesel engine (63kw) provides strong working power
Hydraulic take-off/landing compound boom for space efficiency and lifting force
Hydraulic feeding system with double hydraulic motor power head for high efficiency
Quick rod unloader for fast drill pipe disassembly
Centralized operating handles for safe and convenient operation
Durable construction with low maintenance costs

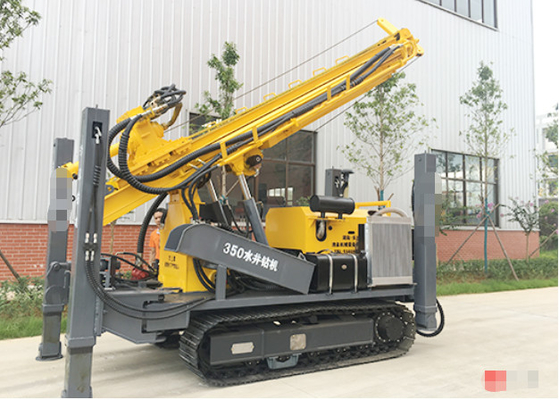

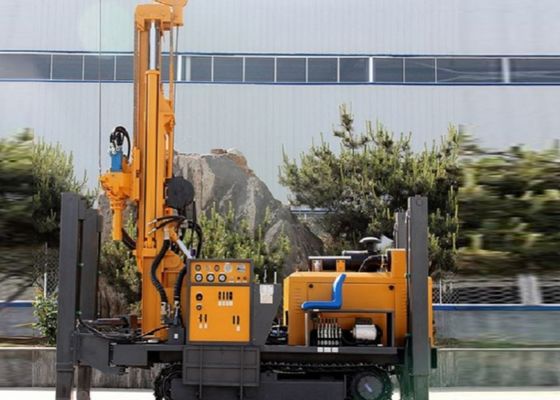

Product Images

Frequently Asked Questions

Q: What kind of drilling rig do you have?

A: We produce small hydraulic drilling rigs, water well drilling rigs, core drilling rigs, engineering drilling rigs, and geological exploration drilling rigs. We recommend suitable models based on your requirements.

Q: Where is your company located?

A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China.

Q: Are you a manufacturer or trading company?

A: We are a 20-year professional manufacturer with ISO certification, operating a large modern drilling rig plant in Hebei, China.

Q: What is your delivery time?

A: Small hydraulic drilling rigs typically take 5-7 days, while large pneumatic water well drilling rigs take 7-15 days. Contact us for urgent orders.

Q: What is your warranty policy?

A: The whole machine has a 1-year warranty (excluding consumable spare parts).

Q: How long can your air compressor be used?

A: Normally more than 10 years with proper maintenance.

Q: What payment methods do you accept?

A: We accept TT (Telegraphic Transfer) and Western Union.
