OEM Gk - 200 Meters Depth Core Industrial Investigation Engineering Drilling Rig

Large Image : OEM Gk - 200 Meters Depth Core Industrial Investigation Engineering Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Engineering Drilling Rig	Hole Diameter:	Customized
Drilling Depth:	200 Meters	Voltage:	380v
Rated Boring Diameter:	200m	Certification:	ISO9001
Power Type:	Diesel	Condition:	New
Warranty:	1 Year	Weight:	500kg
Diameter:	Customized	Application:	Water Well Drilling ,Geological Exploration
Highlight:	200 meters depth exploration drilling rig , industrial investigation oem exploration drilling rig , 200 meters depth engineering drilling rig

OEM GK - 200 Meters Depth Core Industrial Investigation Engineering Drilling Rig

Product Specifications

Attribute	Value
Product name	Engineering Drilling Rig
Hole Diameter	Customized
Drilling Depth	200 Meters
Voltage	380v
Rated Boring Diameter	200m
Certification	ISO9001
Power Type	Diesel
Condition	New
Warranty	1 Year
Weight	500kg
Diameter	Customized
Application	Water Well Drilling, Geological Exploration

Product Overview

The GK-200-2 drilling machine is a hydraulic feeding rig with large power, significant lifting force (2T), and high transmission torque. This versatile equipment is designed for demanding industrial and engineering applications.

Technical Specifications

Parameter	Value
Drilling depth	200m
Drilling Diameter	91mm, 110mm, 130mm, 150mm, 300mm
Drilling rod diameter	50mm
Drilling Angle	90°-75°
Dimensions (L×W×H)	1750×850×1300 (mm)
Weight	880kg/set
Swivel Head Specifications
Spindle Speed	115, 230, 505, 790, 1010 r/min
Spindle stroke	450mm
Spindle Dia.	Φ59mmx53mmx4350mm Kelly rod
Upward displacement speed	0.05m/s
Downward displacement speed	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Vertical maximum output torque	1.5KN.m
Hoist Specifications
Max. Lifting capacity (single rope)	20KN.m
Lifting rotating speed	20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels)	0.17; 0.35; 0.73; 1.5m/s
Drum Diameter	140mm
Wire rope diameter	9.3mm
Wire rope capability	40m

Key Features

Hydraulic feeding structure enhances drilling efficiency and reduces worker fatigue
Upper ball clamp clamping mechanism with hexagonal active drill pipe enables rod reversal without stopping
Hole bottom pressure gauge provides real-time pressure monitoring
Centralized handle design for convenient operation
Compact structure with small volume and light weight for easy relocation
Available in trailer type, crawler type, and disassembly configurations
Suitable for both plain and mountainous terrain operations

Frequently Asked Questions

What is the advantage about your company?

Our company has professional team and professional production line.

Why should I choose your products?

Our products are high quality and low price.

Can the logo and color be customized?

Yes, we welcome you to sample custom.

What after-sales services do you provide?

We provide excellent after-sale support and fast delivery.

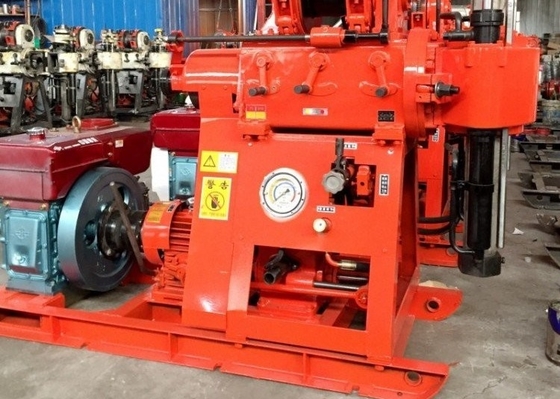

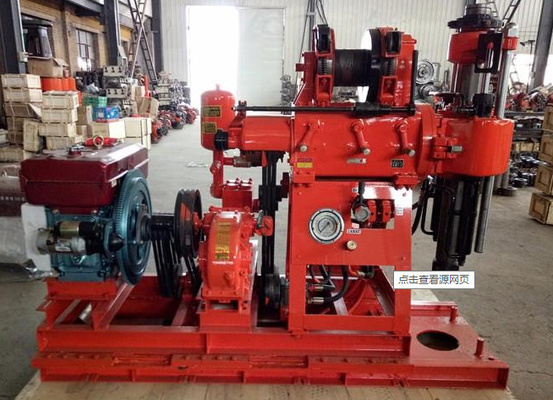

Product Images
