St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine

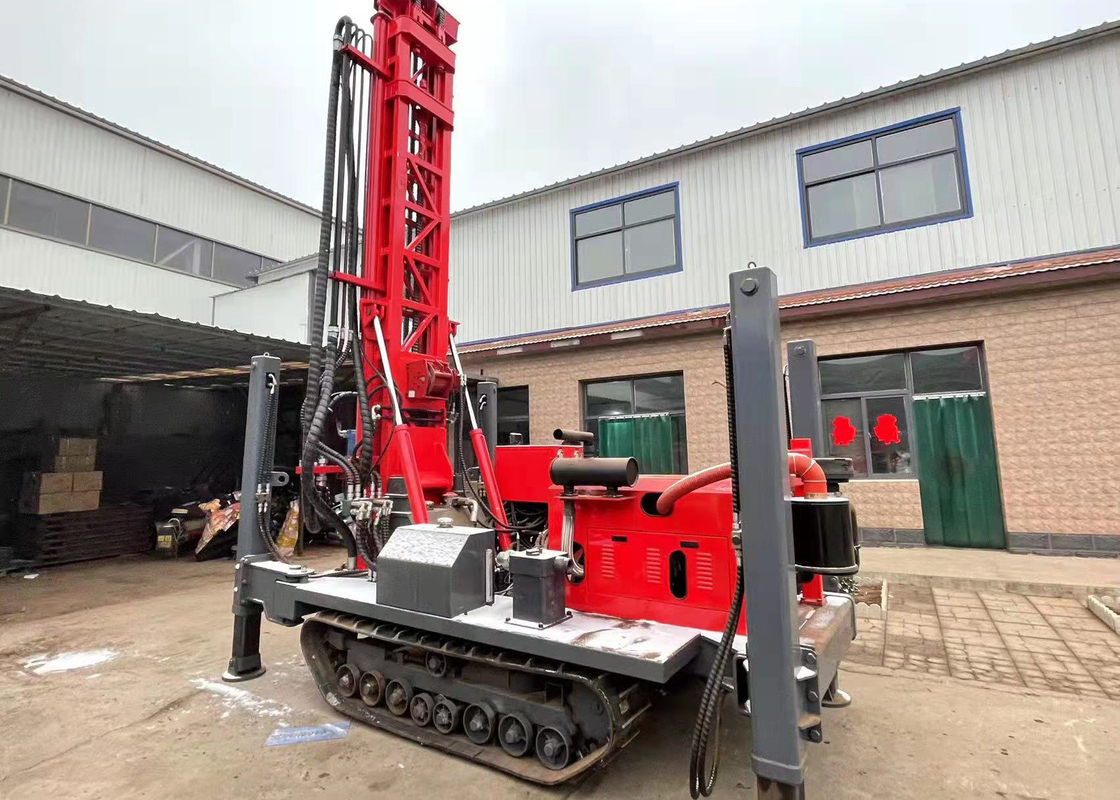

Large Image : St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	Water Well Drilling Rig	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Application:	Water Well Drilling	Power Type:	Diesel
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Drilling Depths:	180 Meters
Highlight:	180m borehole drilling equipment , large pneumatic borehole drilling equipment , 180m depth water well drilling rig

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine

ST180 Water Well Drilling Rig Product Description

In practice, it is mainly used for dig water well, monitoring well, geothermal air-conditioner hole, and anchoring hole, especially the groundwater exploiting projects,it is a newly-developed multifunctional hydraulic driller, it is highly efficient and energy saving. .Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc

ST180 Water Well Drilling Rig Techical Data

Drilling RIg Name	ST180 Drilling Machine
Drilling hole diameter	140-254mm
Drilling depth	180m
One-time advance length	3.3m
Walking speed	2.5km/h
Climbing angles (Max.)	30
Equipped capacitor	55kw
Using air pressure	1.7-2.5mpa
Air consumption	17-31m³/min
Drill pipe length	1.5m, 2.0m, 3.0m
Drill pipe diameter	76mm, 89mm
Rig lifting force	12t
Swing speed	45-65rpm
Swing torque	3200-4600(N.m)
Dimension	380015002200mm
Weight	4500kg

ST 180 Water Well Drilling Rig Advantages

The water well drilling machine can only be used after all parts are firmly installed and connected before being used for drilling. The following are the relevant operation steps for adding and connecting the drill pipe of the water well drilling machine: 1. When it is necessary to add and connect the drill pipe at the depth of one drill pipe after drilling, stop the propulsion first, then stop the rotation, and turn off the cooling water; 2. Operate the clamping handle to make the gripper clamp the drill pipe and open the micro regulating flow valve (right rotation); 3. The gyrator reverses, at the same time, it retreats the feed oil cylinder to rotate the water braid shaft away from the drill pipe; 4. Stop the rotation and operate the fast forward and backward handle to the fast backward position to make the chuck quickly back in place; 5. Connect the drill pipe to be added to the previous drill pipe, and the rotator moves forward while rotating. When the trapezoidal conical thread of the water braid shaft is in screw contact with the conical thread of the newly added drill pipe, immediately operate the gripper handle, loosen the gripper and complete the drill pipe addition

FAQ

Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Our company is located in Jinzhou ,Shijiazhuang,Hebei, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T before shipment
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25 days.

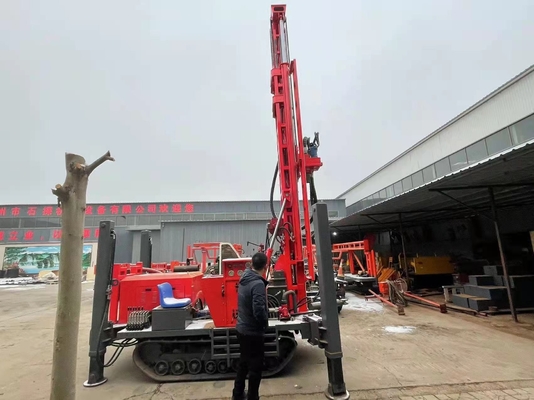

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 0

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 1

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 2

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 3

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 5

St 180 Borehole Large Pneumatic Water Well Drilling Rig Machine 6
