Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Driving Way: | Hydraulic Driving |
|---|---|---|---|
| Usage: | Geological Core Drilling | Weight:: | 9.8T |
| Voltage: | 380V | Air Pressure: | 1.25-3.5Mpa |
| Drilling Efficiency: | 10-35m/h | Weight Of The Rig: | 4m×1.7m×2.2m |
| Power(w): | 92kW | Type: | Rotary Drilling Rig,High Pressure Crawler Drill,Core Drilling Rig |
| High Light: | 380v water well drilling rig,dth water well drilling rig,dth borehole drilling machine |
||
Crawler Borehole Mining Pneumatic DTH Water Well Drilling Rig Machine

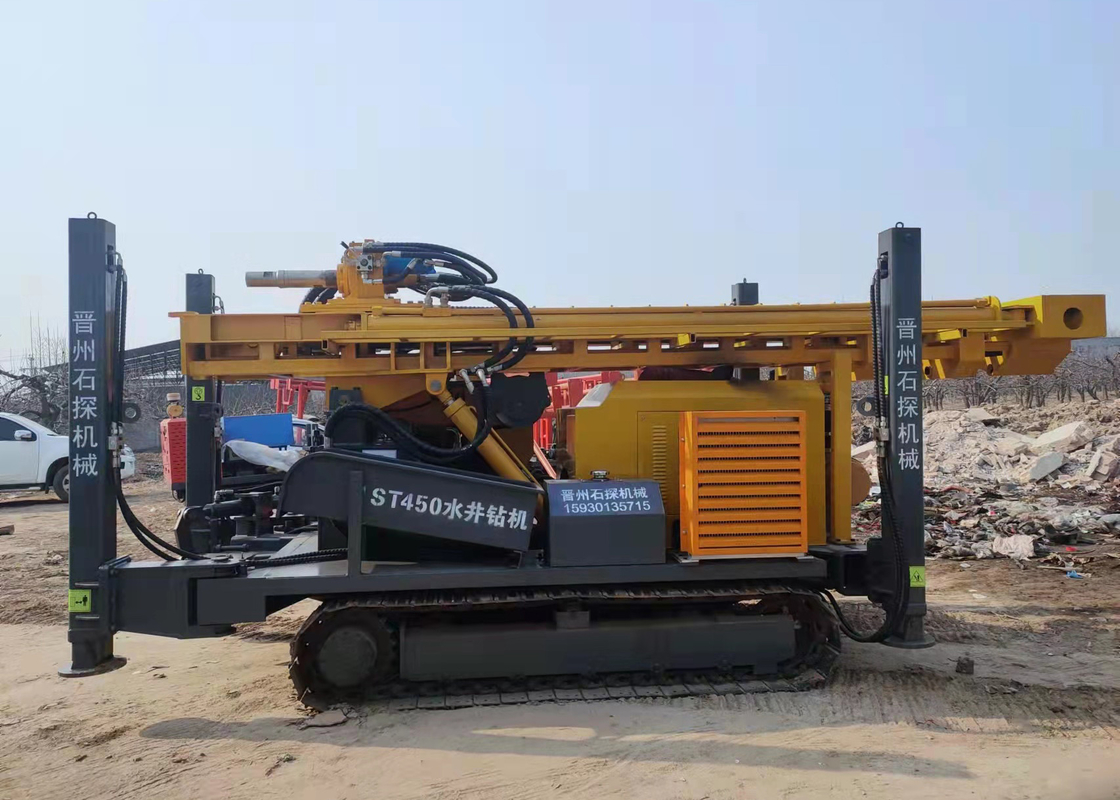

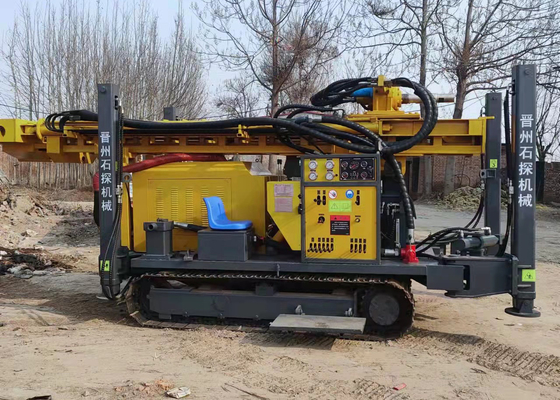

Introduction of 450 crawler type water well drilling rig
Pneumatic Drilling Rig Hengwang pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc..
Product parameters:
|
The Weight(T)
|
6T
|
|
Dimensions(mm)
|
4m×1.7m×2.2m |
|
The hole diameter(mm)
|
105-260mmmm
|
|
Drilling Depth(m)
|
260meters
|
|
Once-time advance length(mm)
|
3000/6000mm
|
|
Walking speed(Km/h)
|
2.5KM/H
|
|
Climbing angles(Max.)
|
30
|
|
Minimum clearance clearance(mm)
|
230 |
|
Using air pressure(Mpa)
|
1.25-3.5 |
|
Air consumption(m³/min)
|
23
|
|
Equipped capacitor(Kw)
|
92
|
|
Swing speed(rpm)
|
55-115
|
|
Swing torque(N.m)
|
5900 |
|
Drill pipe diameter(mm)
|
Φ76 Φ89 Φ102
|
|
Drill pipe length(m)
|
1.5 2.0 3.0 6.0
|
|
Rig lifting force(T)
|
30
|
System composition
1. Power system, equipment that provides energy for the whole set of drilling rig;
2. Working system, equipment for working according to process requirements;
3. Transmission system, equipment for transmitting, conveying and distributing energy for the working unit;
4. Control system, control all systems and equipment, and coordinate and accurately work according to the process requirements;
5. Auxiliary system, equipment to assist the main system.
Sealing and lubrication of flat valve for accessories of water well drilling rig
FAQ
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine shall be one year.
Q6: How long can your air compressor be used?
A: Normally more than 10 years.
Q 7: What are the terms of payment?
A: TT, Western Union transfer.
Q8, Can you provide us with the documents for customs clearance?
A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it
Q9: How is your customer service?
A: 24-hour online service. The 48 hour problem was solved (except in special cases).
Q10: How about your after-sales service?
A: 1. Provide customers with online installation and commissioning instructions.
2. Well trained engineers can serve overseas. (non epidemic impact)
