ST350 Automatic Borewell Machine Crawler Type Full Hydraulic 350m Deep
Product Specifications
| Attribute |
Value |
| Type |
Crawler Mounted Drill Rig |
| Drilling Depth |
350M |
| Application |
Drilling well, hammer for drills |
| Air Pressure |
1.25-3.5Mpa |
| After-sales Service |
Engineers available to service machinery overseas |
| Warranty |
1 Year |
| Weight |
9800KG |
| Power |
92Kw |
| Color |
Yellow |
| Drilling Diameter |
75-325mm |
Machine Introduction
The ST350 Series Water Well Drilling Rig is a lightweight, efficient and versatile drilling equipment powered by a diesel engine from a leading Chinese manufacturer. Designed primarily for drilling wells and agricultural irrigation systems, it excels in water extraction projects in mountainous terrain and rock formations.
This drilling rig series incorporates advanced hydraulic technology, featuring large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation for superior performance.
Technical Parameters
| Parameter |
Value |
| Type |
ST350 |
| Weight |
9.8T |
| Dimensions |
6m × 2m × 2.5m |
| Hole Diameter |
105-305mm |
| Drilling Depth |
350m |
| One-time Advance Length |
6m |
| Walking Speed |
2.5KM/H |
| Climbing Angle |
30° |
| Power |
92KW |
| Air Pressure |
1.7-3.3MPA |
| Air Consumption |
17-35 |
| Drill Pipe Length |
1.5m, 2.0m, 3.0m, 6.0m |
| Drill Pipe Diameter |
89mm, 102mm |
| Rig Lifting Force |
20T |
| Swing Speed |
55-115rpm |
| Swing Torque |
6200-85000N.m |
Drilling Rig Components & Operation
The primary drilling method utilizes rotary table with mud positive circulation. When equipped with appropriate tools, it can adapt to various drilling applications.
The rig operates effectively in clay, sand layers, and bedrock formations. The pressure mechanism enables pressurized drilling for improved shallow hole efficiency, transitioning to decompression drilling as depth increases.
Winch System
- Main Winch: For lifting drilling tools and lowering well tubes
- Auxiliary Winch: Drives impact samplers, coring tools, and sand lifting cylinders; also used for well washing
- Tool Winch: Handles single vertical root movement and tool lifting to reduce manual labor
Performance Features
- Optimal weight distribution between axles for superior driving and off-road capability
- Ample maintenance space for all core components
- Excellent resistance to wind, sand, and seismic activity
- Operates in temperatures from -20°C to 45°C
- Premium power components and hydraulic systems from reliable manufacturers
- Standardized bearings and oil seals for easy replacement
Packaging & Shipping
Packaging: Standard export packaging or customized solutions available
Shipping: Handled by professional freight forwarders
Delivery Time: 7-15 working days after deposit

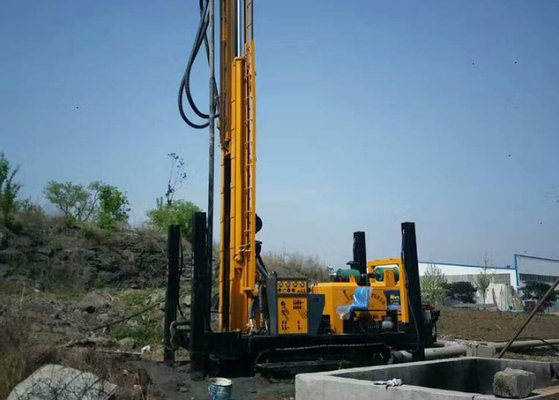

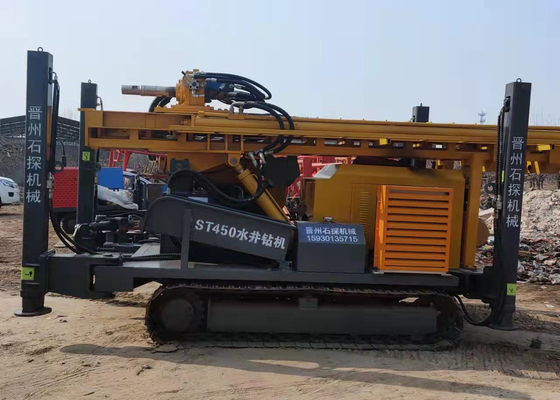

Product Images
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
