Product Details:
Payment & Shipping Terms:
|
| Type: | Geological Drilling Rig Machine | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well,railways, Core Drilling | Drilling Depth: | 100m |
| Dimension(L*W*H): | 1640*1030*1440mm | Drill Pipe Diameter: | 42mm |
| Borehole Dip Angle: | 90°~75 | Spindle Speed: | 142、285、570（r/min) |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| Highlight: | 100m engineering drilling rig,xy-1 exploration drill rigs,rock hydraulic engineering drilling rig |
||

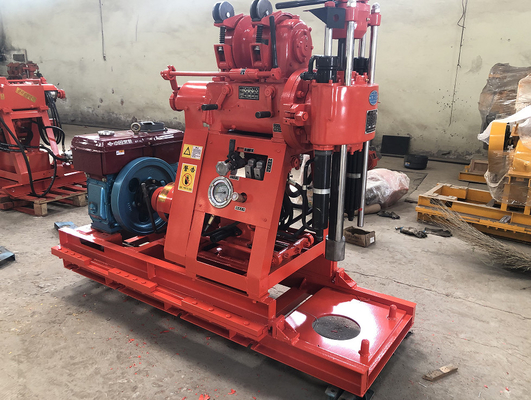

Applications of Water Well Drilling Rig
Y-1 Xy-100 water well drilling rig, namely xy-1 water well drilling rig, is mainly used for geological survey and exploration, geophysical exploration, road and high-rise building foundation survey, water well, blasting hole and other drilling projects.
The drilling rig is a portable shallow hole drilling rig with oil pressure feed. It is suitable for general survey exploration, geophysical exploration, road and building exploration and small water well drilling.
Water Well Drilling Rig technical parameter
| Drilling Rig | |
| Drilling diameter(mm) | 110 |
| Drilling depth (m) | 100 |
| Drill pipe diameter (mm) | 42 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1640* 1030 * 1440 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 142,285,570 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope)(KN) | 10 |
| Reel speed (r/min) | 55,110,220 |
| Reel circumferential speed(m/s) | 0.42,0.84 ,1.68 |
| Reel diameter(mm) | 145 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 27 |
| Brake diameter(mm) | 230 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95(77) |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| The maximum allowable pressure (Mpa) | 1.2 |
| Oil pump | |
| Oil pump type | Gear pump |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | ZS1100 |
| Rated power (KW) | 12.1 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 11 |
| Motor type | Y160M - 4 |
Engineering Drilling Rig main features
1. It has automatic oil pressure feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The ball clamp clamping mechanism is adopted, which can realize the inverted rod without stopping the machine, and the operation is convenient and reliable.
3. The handle is centralized and easy to operate. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.

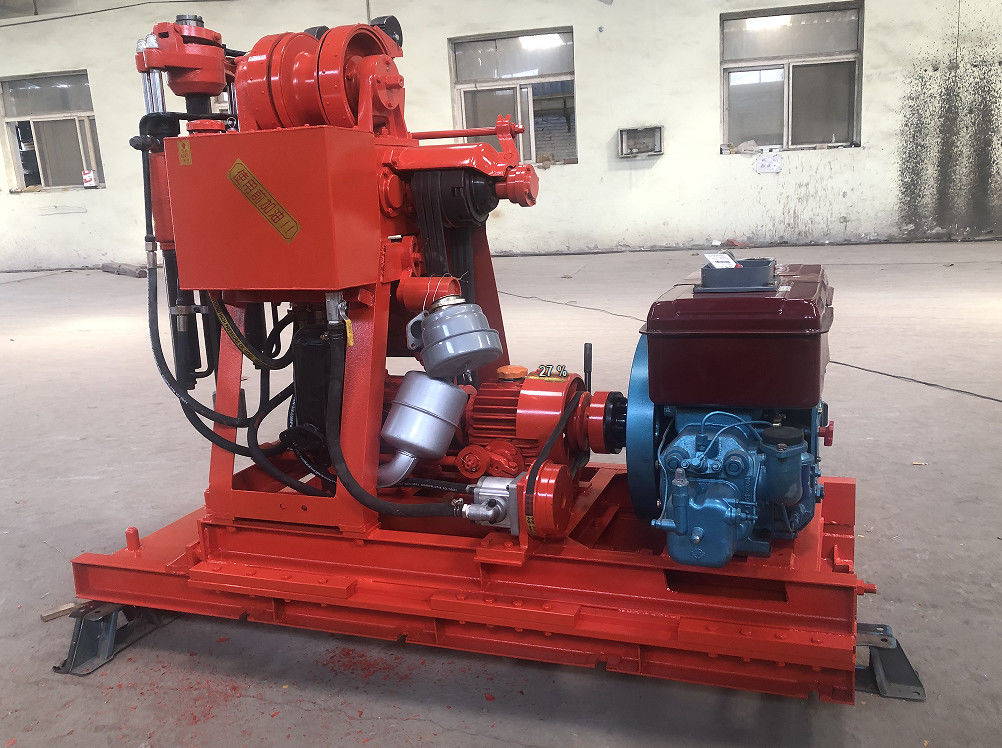

4. The structure is compact. The drilling rig, water pump and power engine (diesel engine or motor) are assembled on the same base, occupying a small area of the airport. Light weight, strong decomposability and easy to move.
FAQ
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine shall be one year.
Q6: How long can your air compressor be used?
A: Normally more than 10 years.
Q 7: What are the terms of payment?
A: TT, Western Union transfer.
Q8, Can you provide us with the documents for customs clearance?
A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it
Q9: How is your customer service?
A: 24-hour online service. The 48 hour problem was solved (except in special cases).
Q10: How about your after-sales service?
A: 1. Provide customers with online installation and commissioning instructions.
2. Well trained engineers can serve overseas. (non epidemic impact)
