Air And Water St350 Deep Crawler Drill Machine Iso Certification

Air And Water St350 Deep Crawler Drill Machine Iso Certification
Air And Water St350 Deep Crawler Drill Machine Iso Certification
video play

Large Image :  Air And Water St350 Deep Crawler Drill Machine Iso Certification

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: Air And Water Large Water Well Borehole Drilling Equipment ,ST350 Deep Drilling Crawler Mounted Drill Rig Model: Truck-mounted Drilling Rig,crawler Mounted Drilling Rig
Machine Type: Drilling Equipment Certification: ISO
Hole Diameter: Customized Drilling Depths: 350meters
Condition: New Weight: 8.9 T
Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
After Sale Service: Video Support Color: Red ,Blue,Yellow
High Light:

350m deep crawler drill machine

,

iso certification crawler drill machine

,

350m deep crawler mounted drill rig

Air and Water Large Water Well Borehole Drilling Equipment ,ST350 Deep Drilling Crawler Mounted Drill Rig

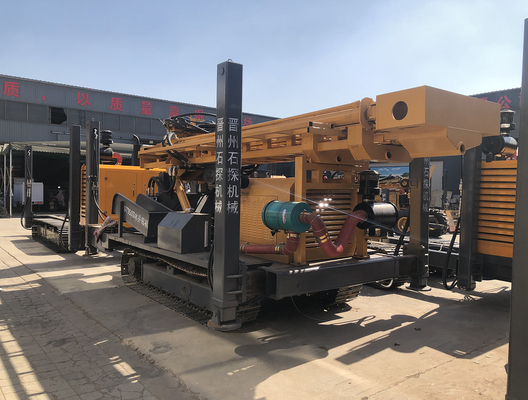

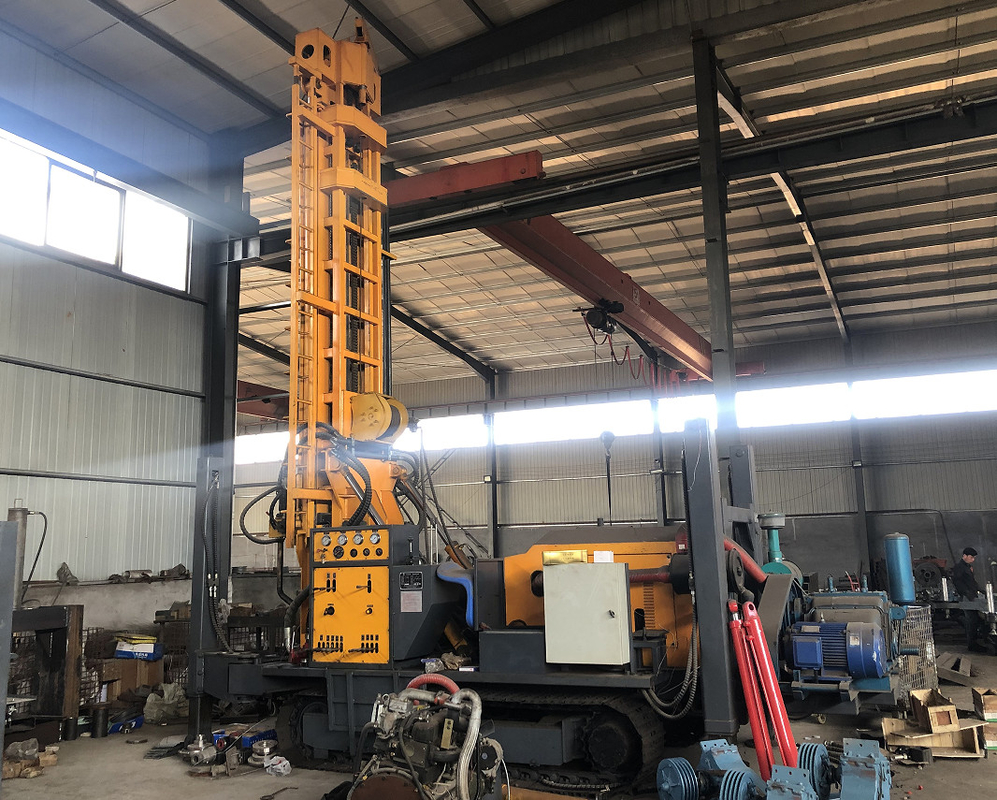

ST 350 Crawler Drilling Machine Description



It uses full hydraulic control, and the Top drive to drive the rotation of Drilling Tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.



ST 350 Crawler Drilling Machine Technical Data



Type
ST350 Drilling Rig
Power Type Diesel
Place of Origin China
Brand Name SHITAN
Usage Water Well Drilling
Dimension(L*W*H) 6400MM*2250MM*2700MM
Weight 8.9 T
Certification ISO9000
Warranty 1 YEAR
Marketing Type New Product 2020
Drilling diameter 152mm-305mm
Depth 25M
Rotary speed 0-90rpm
DTH K40
Drilling Rods 76*2m+76*3m
Air consumption 13-20m3/min
Packing  Standard Export Packing



ST350  Crawler Drilling Machine Fetures



water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.



ST 350  Main Operation Attentions





1. Operators must receive technical training, understand the structure principle and working performance of DTH, be familiar with the safe operation rules and maintenance rules of DTH, and pass the examination before they can operate alone.

2. the operation personnel should wear work clothes, wear a helmet, lesbians should be braid into the hat.

3. When blasting, the equipment should be retreated to a safe distance and covered up for protection;

A thorough inspection should be carried out after the shooting.

4. In case of strong wind and freezing above 6, do not go on the slide frame.If necessary, you must wear a seat belt.It is strictly prohibited to ride on the slewing mechanism or slide frame.





Air And Water St350 Deep Crawler Drill Machine Iso Certification 0Air And Water St350 Deep Crawler Drill Machine Iso Certification 1

Air And Water St350 Deep Crawler Drill Machine Iso Certification 2Air And Water St350 Deep Crawler Drill Machine Iso Certification 3Air And Water St350 Deep Crawler Drill Machine Iso Certification 4
