Product Details:
Payment & Shipping Terms:
|
| Product Name: | ST 180 Crawler Mounted Drilling Rig | Color: | Red Yellow |
|---|---|---|---|
| Feature: | High Drilling Efficiency | Usage: | Water Well,blast Borehole |
| Application: | Water Well Drilling | Power Type: | Diesel |
| Drilling Depth: | 180 Meters | Warranty: | 1 Year |
| Voltage: | 220V/380V | Length Of Drill Pipe(mm): | 3m |
| Condition: | New | Drilling Depths: | 180 Meters |
| High Light: | 180 meters water well drilling equipment,customized water well drilling equipment,pneumatic crawler mounted drill rig |
||

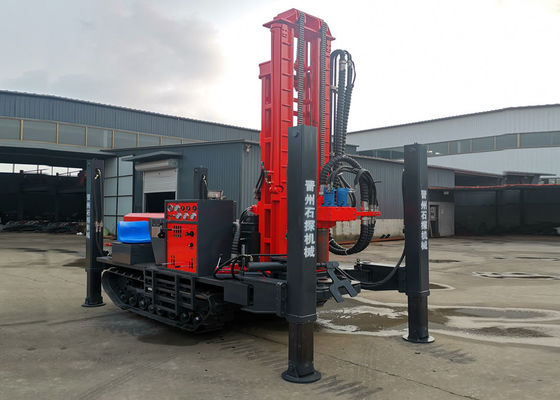

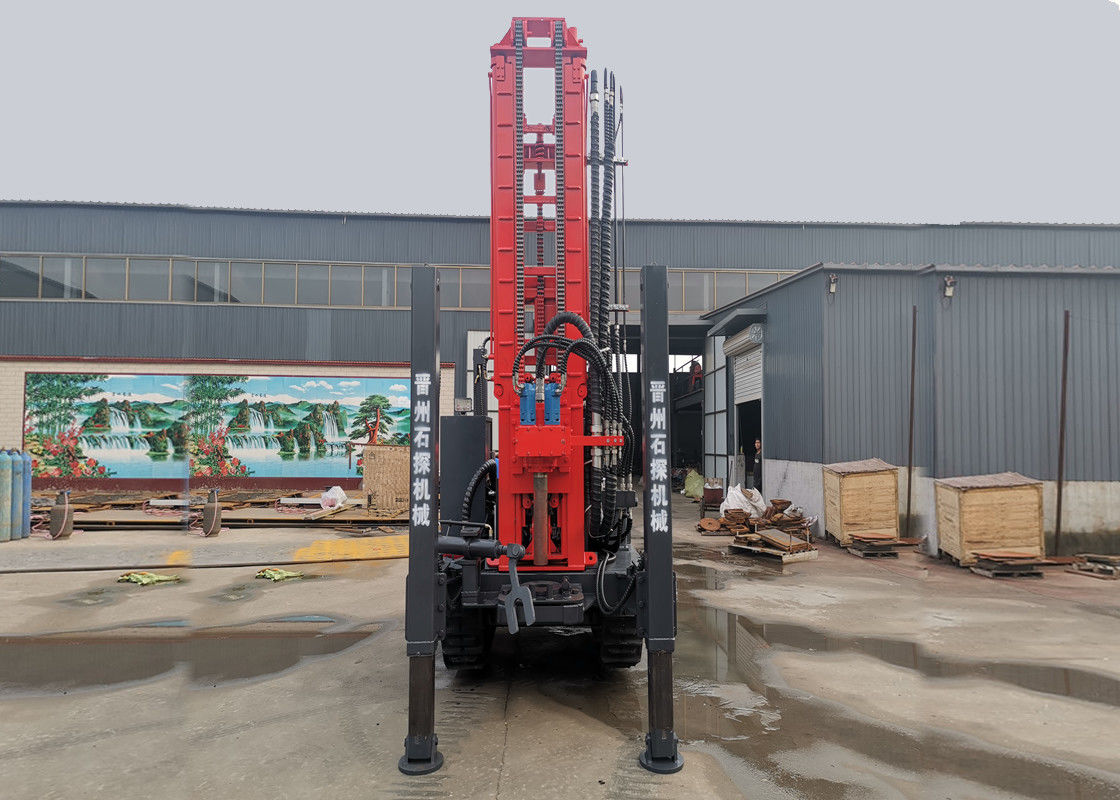

ST180 DHT Blasting Rubber Crawler Mounted Drilling Rig
ST 180 Crawler Drilling Rig Self Introduction
The drilling depth is 180m, the drilling diameter is 105-180mm, the lifting force is 16t, the tower height is 3M, and the whole machine weight is 4.5t, It adopts the rubber track design, which has the advantages of low noise, no damage to the road, less vibration and high speed.
ST 180 Crawler Mounted Drilling Rig Tech Data
|
ST 180 Crawler Mounted Drilling Rig
|
|||
| Item NO. | ST-180 | Air consumption(m³/min) | 17-31 |
| The Weight(T) | 4.5 | Equipped capacitor(Kw) | 55 |
| Dimensions(mm) | 3800*1550*2350 | Swing speed(rpm) | 45-65 |
| The hole diameter(mm) | 140-254 |
Swing torque(N.m)
|
3200-4600 |
| Drilling Depth(m) | 180 | Drill pipe diameter(mm) | 76 89 |
| Once-time advance length(m) | 3.3 | Drill pipe length(m) | 1.5 2.0 3.0 |
| Walking speed(Km/h) | 2.5 | Rig lifting force(T) | 10 |
| Climbing angles(Max.) | 30 | sopporting Power | 29m3/min 23BAR AIR COMPRESSOR |
| Using air pressure(Mpa) | 1.7-2.5 | ||
ST 180 Crawler Mounted Drilling Rig Advantages
ST 180 Crawler Mounted Drilling Rig
Q 1: What kind of drilling rig do you have?
A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large model will take 7-15 days.
If there is an urgent order, please contact our sales in advance.
Q 5: How long is the warranty of your well drilling rig?
A: Except for consumable spare parts, the whole machine 12 months.
