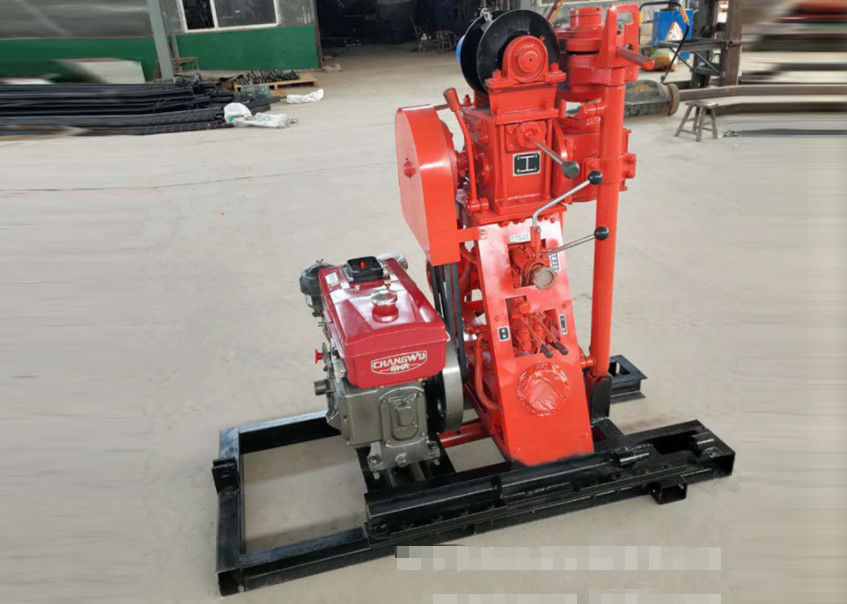

Small 50 Meters Geological Drilling Rig Machine Engineering

Small 50 Meters Geological Drilling Rig Machine Engineering
Small 50 Meters Geological Drilling Rig Machine Engineering
video play

Large Image :  Small 50 Meters Geological Drilling Rig Machine Engineering

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Product Name: Geological Drilling Rig Machine Hole Diameter: Customized
Drilling Depth: 50 Meters Voltage: 380v
Application: Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration OEM: Acceptable
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
Weight: 145kg Diameter: Customized
High Light:

small engineering geological drilling rig

,

50 meters geological drilling rig

,

50 meters depth engineering drilling rig

OEM Soil Test Portable Geological 50 Meters Drilling Rig Machine





St 50 Geological Drilling Rig Machine Introduction



50 meters depth drilling rig is very suitable for personal use, the drilling rig can be equipped with one of three kinds of power: diesel engine, gasoline engine or motor, which is diesel power by default.It has an automatic oil pressure feeding mechanism to improve the drilling efficiency and reduce the physical labor of workers



St 50 Geological Drilling Rig Machine Technical Information



Max. drilling depth 50m
Max .opening diameter φ75-φ108mm
End hole diameter 56-75mm
Active drill pipe 50/1000mm
Drill pipe diameter Φ42mm
Drill pipe length 1000mm
Power (diesel engine) 5.8kw(8P)/2200r/min
Size 1400*600*1600mm
Weight 240kg
Spindle
Speed 285-570r/min
Torque 600 N*m
Stroke 1000mm
Lifting force 300KG
Pressure 200KG
Drilling Tower (optional)
Rated load 1t
Height 4m
Tower leg specifications 60mm
Mud Pump
Model BW-50
Flow 50L/min
Max.pressure 1.2Mpa
Times 63/min
Inlet hose diameter φ55mm*2.5m
Outlet hose diameter Φ20mm*10m




Geological 50 Meters Drilling Rig Machine Characteristic



1. Geological survey work in a highly difficult area that is small and light and convenient for high altitudes

2. Adopting an automatic hydraulic feed mechanism to increase drilling efficiency and reduce labor intensity of workers.

3, Using 8 HP high-efficiency diesel engine as a power for you to export a steady stream of strong power.

3, Application of positive and negative four-speed operation to facilitate a variety of terrain exploration drilling

4. The four-axis bearing positioning of the vertical shaft box ensures that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer.

5. The machine adopts the national patented technology of the taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.



Geological 50 Meters Drilling Rig Machine Application



It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.



Soil Sampling Procedure



Divide the field into different homogenous units based on the visual observation and farmer’s experience.

Remove the surface litter at the sampling spot.

Drive the auger to a plough depth of 15 cm and draw the soil sample.

Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.

If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.

Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.


Small 50 Meters Geological Drilling Rig Machine Engineering 0
Small 50 Meters Geological Drilling Rig Machine Engineering 1
Small 50 Meters Geological Drilling Rig Machine Engineering 2
