Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core
Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core
video play

Large Image :  Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: Two Hundred Meters Depth 220V Soil Sampling Investigation Core Drilling Rig Color: Red Yellow Blue
Feature: High Drilling Efficiency Usage: Water Well,exploration
Application: Water Well Drilling Power Type: Diesel
Drilling Depth: 200 Meters Warranty: 1 Year
Voltage: 220V/380V Length Of Drill Pipe(mm): 3m
Condition: New Depths: 200 Meters
High Light:

220v soil sample drilling machine

,

two hundred meters core drill rig

,

geological core soil sample drilling machine

Two Hundred Meters Depth 220V Soil Sampling Investigation Core Drilling Rig





GK 200 Core Drilling Rig Introduction



The drilling rig is equipped with upper ball clamp and active drill pipe, which can reverse the rod without stopping, with high work efficiency, safety and reliability.It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.



GK 200 Core Drilling Rig Tech Information



Drilling depth
200m
Maximum open hole caliber 300mm
End hole caliber 75mm
Drill rod caliber 60mm
Drilling angle 90°~75°
Drill weight (No include power) 975kg
Unity machine dimensions 1433×697×1273m
Spindle
spindle speed 64 128 287 557r/min
Spindle stroke 450mm
Winch
Max.single line hoisting capacity 2400kg
Single line lifting speed 0.41,0.82,1.64m/s
steel wire rope caliber 13m(35m)
Mud pump
Type Horizontal single urn twin-action
Displacement
170/150L/min(diesel or electromotor)
Diesle engine ZS1115 16.2kw 2200r/min
Electric motor Y160M—4 11kw 1440r/min



GK 200 Core Drilling Rig Features



1)  a hydraulic feeding structure to improve the drilling efficiency and reduce the labor intensity of workers.

(2) with upper ball clamp clamping mechanism and hexagonal active drill pipe,reverse the rod without shutdown and is easy to operate.

(3) It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.

(4) The handle is centralized and easy to operate.

(5) The base is equipped with an oil cylinder, which can move back and forth for easy lifting and lowering of drilling tools

(6) The drilling rig has the advantages of compact structure, small volume, light weight, strong decomposition and easy relocation. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.



Direct replacement of drill pipe



To install a pair of locking handles at both ends of the added drill pipe, buckle the lifter to the locking handle of drill pipe, move the right handle of winch to lift the drill pipe to the top of the drill hole, connect and tighten with the reducer joint of drill pipe, move the right handle of winch to make the drill pipe rise slightly, remove the pad fork, continuously move and loosen the left handle of winch, and lower the drill pipe into the drill hole at a uniform speed, When the groove of reducer joint is close to the inlet, block it with a fork, take down the elevator and continue drilling.



How is exploration drilling done?



Drilling consists of sinking a drill string into the ground while injecting a special mud. This allows fragments of rock and samples of gas to be brought back to the surface. Boreholes have to be drilled at several locations to delineate the potential deposit.

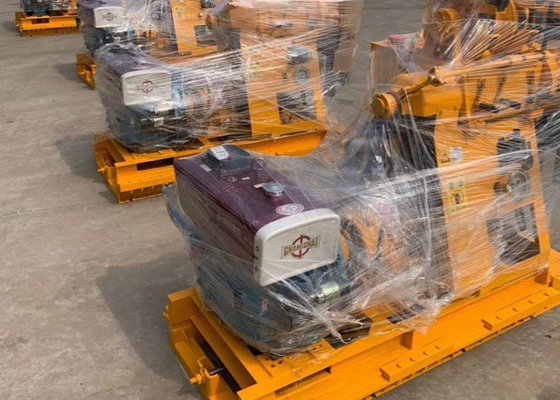

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 0

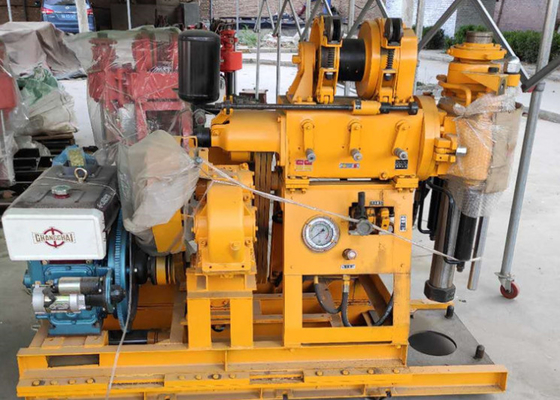

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 1Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 2

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 3

Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 4
 Two Hundred Meters Depth Soil Sample Drilling Machine 220v For Geological Core 5
