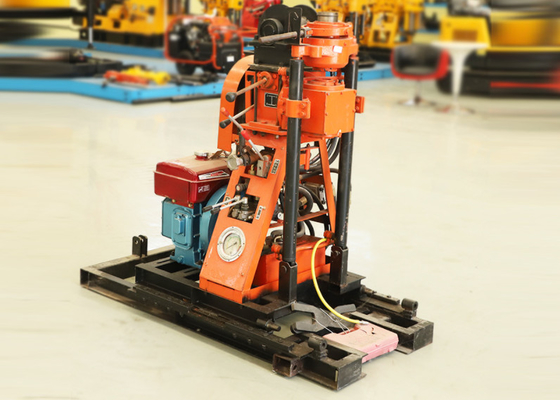

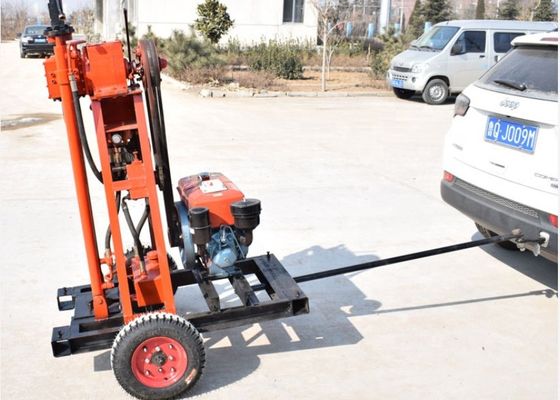

Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement

Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement
Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement

Large Image :  Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Product Name: Man Portable 50 Meters Depth Easy Movement Diamond Core Drilling Rig Hole Diameter: Customized
Drilling Depth: 50 Meters Voltage: 380v
Application: Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration OEM: Acceptable
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
Weight: 145kg Diameter: Customized
High Light:

oem diamond core drill rig

,

easy movement diamond core drill rig

,

50meters depth core drill rig

Man Portable 50 Meters Depth Easy Movement Diamond Core Drilling Rig





ST 50 Core Drilling Rig Description



It is the advanced portable hydraulic drilling machine in China. It is especially suitable for coring operations in mountainous areas, hills, rivers and other special difficult terrains, as well as engineering geological surveys for railways, hydropower, traffic, bridges, dam foundations, etc.; geological core drilling, physical exploration; small grouting holes, Drilling of blastholes; drilling of small wells.



ST 50 Core Drilling Rig Technical Information



Drilling Rig hole Diameter: 75-108mm
End hole Diameter 56-75mm
Main drill pipe 50/1000mm
Max Depth: 50m
Diesel engine 8hp/5.8kw Diesel engine 2200r/min
Drilling pipe length: 1000mm
Drilling angle 90°
Drilling pipe diameter: 42mm
Vertical shaft
Vertical shaft Speed 285 570r/min
Vertical shaft Stroke 1000mm
Lifting power 300kgs
Additional pressure 200kg
Mud pump
Model BW-50
Flow 50L/min
Max Pressure 1.2MPA
Reciprocal time 63times/min
Input-water pipe diameter 55mm*2.5m
Output- high pressure water pipe diameter 20mm*10m
Drilling machine overall dimension: 1400*600*1600mm
Weight 240kgs


ST 50 Core Drilling Rig Advantages:



1. Stable performance The whole machine has small volume and convenient movement, which is convenient for handling and installation in small section roadway 2. Reasonable structure The utility model has the advantages of light weight, simple structure, fast drilling speed and large diameter of coring samples 3. Wide application It can be used for domestic water drilling in households / factories, farmland irrigation wells, installation of water air conditioners, site piling, etc 4. Save time and effort Working performance, high temperature, high working efficiency, time-saving and labor-saving.



How do I find out how much water is in my well?



Multiply the length of water column in feet by the gallon volume per given diameter. For example, a 4-inch-diameter well has 0.65 gallons of water per foot and a 6-inch diameter well has 1.47 gallons per foot.A well is classed as shallow if it is less than 50 feet deep. Wells with a depth of less than 100 feet lack enough soil thickness to adsorb all of the contaminants seeping into the ground . Which can result in poor water quality. Shallow wells extract the water



How do well drillers know where to drill?



They are based on the changes in electric conductivity caused by the water. Finally bore holes can be drilled to assess the geological sequence of the strata and to identify layers potentially able to host an aquifer


Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement 0
Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement 1Man Portable Oem Diamond Core Drill Rig St 50 Meters Depth Easy Movement 2
