300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling

300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling
300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling
video play

Large Image :  300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 5 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 set/year
Detailed Product Description
Product Name: GK 200 Core Drilling Rig Warranty: 1 Year
Drilling Hole Diameter: Customized Drilling Depth: 200 Meters
Dimension(L*W*H): 1180×680×1600mm Drill Pipe Diameter: 42mm
Condition: New Weight: 200KG
Power Type: Diesel Color: Yellow,Red
Certification: ISO SGS, ISO, ISO9001 Packing: Wooden Box
High Light:

300 mm diameter core drill rig

,

core drill rig diamond exploration machine

,

300 mm diameter diamond drill rig

300 mm Diameter Diamond Exploration Core Drilling Rig Machine For Sampling





GK 200 Core Drilling Rig Description


The rig is a high-speed portable drilling rig fed by hydraulic pressure,With 200 meters drilling depth ,300mm hole diameter ,with 76 drilling rods,this model can be equipped with the crawlers also with the wheels ,OEM is available


GK 200 Core Drilling Rig Tech Details



Drilling depth 200m
Max open hole diameter 300mm
End hole diameter 75mm
Drilling Rod diameter 76mm
Drilling angle 90°~75°
Drill rig moving stroke 300mm
Power Engine Diesel engine 22HP
Spindle speed 64 128 287 557 r/min
Spindle stroke 450mm
Max.Single line lifting capacity 2400kg
Max.Single line lifting speed 0.41 0.82 1.64m/s
Wirerope caliber 13mm
Mud pump detail Diesel 170L/min
Work pressure 1.5Mpa
Water inlet pipe diameter 40mm
Water outlet pipe diameter 30mm


GK 200 Core Drilling Rig Main Advantages:



1. The drill adopts mechanical transmission, with simple structure and easy maintenance and operation.
2. The drilling rig is equipped with water brake device, which can control the tripping speed, reduce the wear of drum, brake belt and other parts, the impact force of lifting and tripping.
3. Technical improvement is made on the original drilling rig. The shaft diameter device is added in the clutch part to enhance the power of the driving shaft, and the gear in the gearbox of the drilling rig is also improved in material and technology on the original basis.
4. It is applicable to deep hole drilling projects such as coalfield geology, hydrogeology, metal deposits, non-metal deposits and natural gas, with strong practicability, operability and universality. It can meet the process requirements of diamond drilling, cemented carbide drilling
5. Motor or diesel engine for users to choose according to the operating environment or conditions.


GK 200 Core Drilling Rig Main Application:



(1) general survey exploration and, geo-exploration, road and building exploration, shothole drill

(2) Selects different drill bit of diamond, alloy or steel grit according to the stratum.

(3) Drills in loams and base rock layers of two to nine grades.



The important role of bits in the drilling process



Bit plays a very important role in the drilling of water well drilling rig, but the quality of a bit directly affects the efficiency and quality of water well drilling. Therefore, in the selection process, we should pay attention to the selection and use of lower bit. When we are operating the drill bit, we must pay attention to several aspects in order to better production and operation.

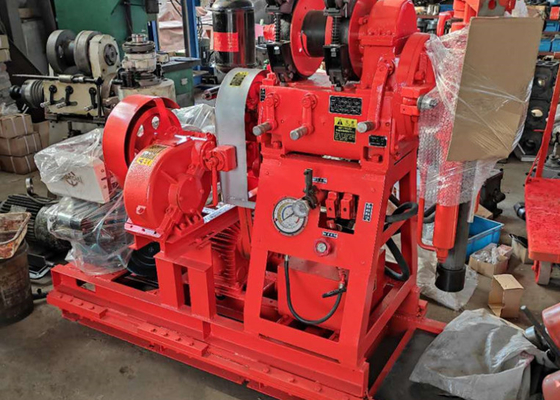

300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling 0

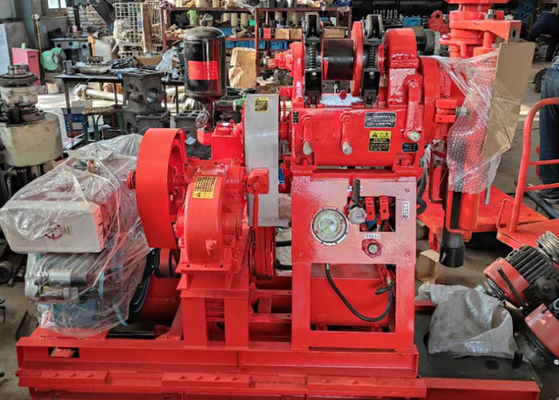

300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling 1300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling 2

300 Mm Diameter Core Drill Rig Diamond Exploration Machine For Sampling 3
