GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

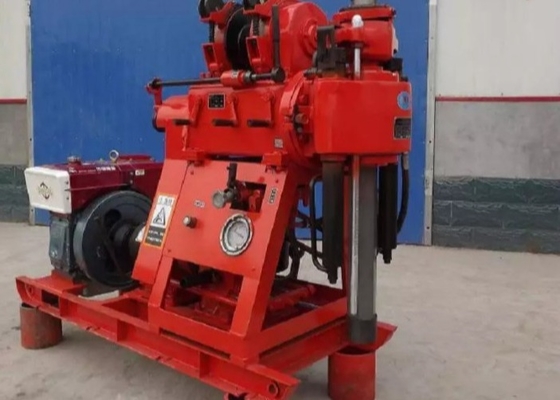

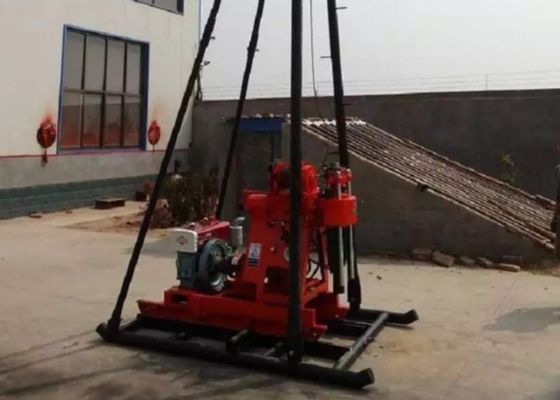

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting
GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting
video play

Large Image :  GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: GY-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 sets per year
Detailed Product Description
Product Name: GY 200 Core Drilling Rig Drilling Depth: 300 Meters
Hole Diameter: Customized Weight: 500kg
Voltage: 380v Rated Boring Diameter: 200m
Certification: ISO9001 Power Type: Diesel
Condition: New Warranty: 1 Year
After-sales Service Provided: Video Technical Support Application: Exploration ,water Well Drilling
High Light:

300 meters depth engineering drilling rig

,

survey exploration sample engineering drilling rig

,

300meters depth core drill rig

GY 200 Core Drilling Rig 300 Meters Depth Mutifuction Sample Collecting For Exploration





GY200 Core Drilling Rigs Machine Product Description



Gy-200 drilling rig is a portable multi-purpose engineering survey and construction drilling rig.It is 300 meters depth and 300 mm hole diameters, It is suitable for geological exploration of industrial, civil buildings, railways, bridges and hydropower projects, as well as the construction of small-diameter foundation pile holes.



GY200 Core Drilling Rigs Machine Technical Data



Borehole diameter 75,91,110,130,150,300
Drilling depth 75-300m
Drill pipe diameter 42,50,60mm
Angle range 0°-360°
Size(L*W*H) 1860*780*1480mm
Weight(without power unit) 900kg

Spindle speed(8-speed) 53,92,145,200,250,435,668,947 r/Min
Spindle stroke 500mm
Upward max speed of spindle(no load) 0.05m/s
Downward max speed of spindle(no load) 0.067m/s
Max feeding force of spindle 36KN
Max lifting force of spindle 49KN
Max output torque of spindle 2500N.m
Hoist(winch)
Max.lifting capacity(single rope) 25KN
speed 34, 59, 94, 129r/min
Hoist drum linear velocity(two levels) 0.166, 0.331, 0.733, 1.465m/s
Wire rope dia 12.5mm
Wire rope capability 30m
Oil pump
Rated pressure 16Mpa
Displacement 16ml/r
Rated speed 2500r/min
Power(diesel engine or motor)
Model(diesel engine) 2100
Rated power 17.6kw



GY200 Core Drilling Rig Product Advantages:


1. It has an automatic oil pressure feeding mechanism to improve drilling efficiency and reduce workers' physical labor;
2. The ball clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable;
3. Equipped with hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole;
4. The handle is centralized and easy to operate;
5. Compact structure, drilling rig, water pump and diesel engine are installed on one base, occupying a small area of the airport;
6. Light weight, strong decomposability, easy to move, suitable for working in plain or mountainous areas.



GY200 Core Drilling Rigs Product Applications:



1.The drilling rig is suitable for general survey, geophysical exploration, road and building exploration, etc.

2. Alloy, steel sand and steel particle bits can be selected for drilling according to different formations.

3. It can drill sandy clay and bedrock of grade 2-9.

4. The rated drilling depth is 100m, and the depth shall not exceed 120m. The rated opening diameter is 110mm, the allowable opening diameter is 130mm, and the final hole diameter is 75mm. The drilling depth depends on the formation conditions.



Core Drilling Machine Principle



The principle of core drilling machine is basically the same, and the main components are drilling machine, drill pipe, drill bit, etc. The drill provides power to drive the drill pipe and drill bit to drill and obtain deep core samples. According to different depths and strata, corresponding to different types of drilling rigs,

The specific steps of soil sampling method are as follows:

1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.

2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 0



GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 1GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 2

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 3



GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 4

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 5

GY 200 Hydraulic Core Drilling Rig 300 Meters Prospect Easy Investigation Engineering Sample Collecting 6
