200 Meters Wheels Or Crawler Mounted Portable Soil Sample Test Drilling Machine

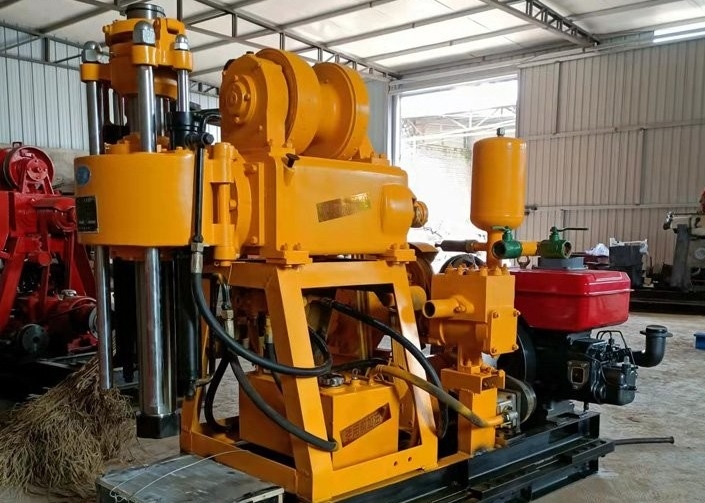

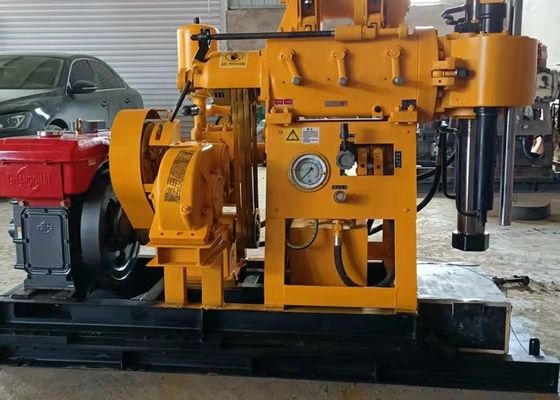

GK 200 Soil Testing Drilling Machine Introduction
Gk200 drilling rig is a high-speed portable drilling rig fed by hydraulic pressure,and equpped with BW 160 mud pump.The drilling rig depth is 200 meters and hole diameter is 295mm.
GK 200 Soil Testing Drilling Machine Tech Data
|
Drilling depth details
|
200m |
| Maximum open hole caliber |
300mm |
| End hole caliber |
75mm |
| Drill rod caliber |
60mm |
| Drilling angle |
90°~75° |
| Drill weight (No include power) |
975kg |
| Unity machine dimensions |
1433×697×1273m |
| Spindle |
| spindle speed |
64 128 287 557r/min |
| Spindle stroke |
450mm |
| Winch |
| Max.single line hoisting capacity |
2400kg |
| Single line lifting speed |
0.41,0.82,1.64m/s |
| steel wire rope caliber |
13m(35m) |
| Mud pump |
| Type |
Horizontal single urn twin-action |
| Displacement |
170/150L/min(diesel or electromotor)
|
| Diesle engine |
ZS1115 16.2kw 2200r/min |
| Electric motor |
Y160M—4 11kw 1440r/min |
GK 200 Soil Testing Drilling Machine Features
1) It has a hydraulic automatic feeding structure
(2) The ball clamp clamping mechanism
(3) It is equipped with a hole bottom pressure gauge
(4) The handle is centralized and easy to operate.
(5) The structure is compact.
GK 200 Soil Testing Drilling Machine Application
(1) geological survey exploration, geophysical exploration and road construction exploration and drilling engineering.
(2) Diamond, alloy and composite bits can be selected for drilling according to different strata.
(3) grade 2-9 sandy clay and bedrock.
(4) drilling grouting holes, blasting holes and small water wells.
Soil Sampling Procedure
Divide the field into different homogeneous units based on the visual observation and farmer’s experience.
Remove the surface litter at the sampling spot.
Drive the auger to a plough depth of 15 cm and draw the soil sample.
Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.
If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.
Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
