260m Depth Tractor Drilling Machine Diesel Motor Power Engine

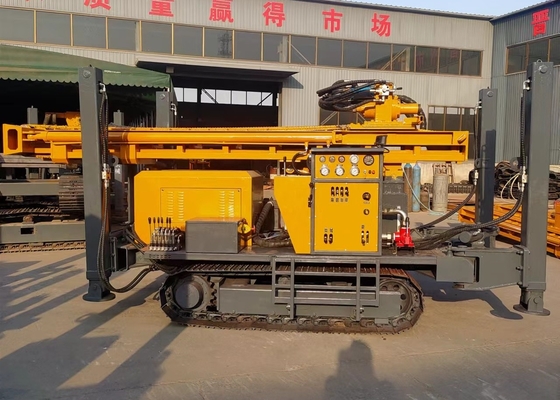

Large Image : 260m Depth Tractor Drilling Machine Diesel Motor Power Engine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-260

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Naked
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	1000year

Contact Now

Detailed Product Description

Type:	Water Well Drilling Rig	Voltage:	380V
Model Number:	ST-260	Name:	Well Drilling Equipment
Air Pressure:	1.25-3.5Mpa	Weight Of The Rig:	4m×1.7m×2.2m
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	260m depth water well drilling rig , diesel motor water well drilling rig , 260m depth water well drilling equipment

260m Depth Tractor Drilling Machine Diesel Motor Power Engine

A high-performance water well drilling rig designed for professional applications with a maximum drilling depth of 260 meters.

Product Specifications

Attribute	Value
Type	Water Well Drilling Rig
Voltage	380V
Model Number	ST-260
Air Pressure	1.25-3.5Mpa
Weight of the Rig	4m×1.7m×2.2m
Warranty	1 Year
After-sales Service	Engineers available to service machinery overseas

Product Overview

The ST260 Water Well Drilling Rig Machine with Crawler Chassis is a lightweight, mobile drilling solution with a maximum drilling depth of 260m and drilling diameter of 100-219mm. Ideal for engineering, agricultural irrigation, geothermal, and civil applications in both hydraulic and air drilling modes.

Technical Parameters

Weight of whole machine	5.5T
Drilling caliber	140-254mm
Drilling depth	200m
One-time push length	3.3m
Walking speed	2.5km/h
Climbing ability	Max. 30°
Power of main machine	76kw
Working pressure	1.7-2.5mpa
Air consumption	17-31m3/min
Diameter of drill rod	76, 89mm
Length of drill rod	1.5, 2.0, 3.0m
Lifting force	12T
Rotation speed	45-65rpm
Rotation torque	3200-4600N.m
Dimension	380015002200mm

Key Features

Powerful Engine: Equipped with Guangxi Yuchai's 77 Kw turbocharged engine
Durable Traveling System: Reduction gearbox-equipped motor for extended service life
Efficient Hydraulic System: Parallel gearbox design with separate oil pump for optimal power distribution
Robust Power Head: Integrally cast gearbox with dual motors for high torque and durability
Professional Chassis: Excavator-grade chassis with wide chain plates for minimal road damage
Safety Features: Boom limiters and protective tubing jackets for enhanced operational safety
High Efficiency: 42KW diesel engine delivers powerful drilling performance
Mobility: All-terrain self-propelled capability with easy operation

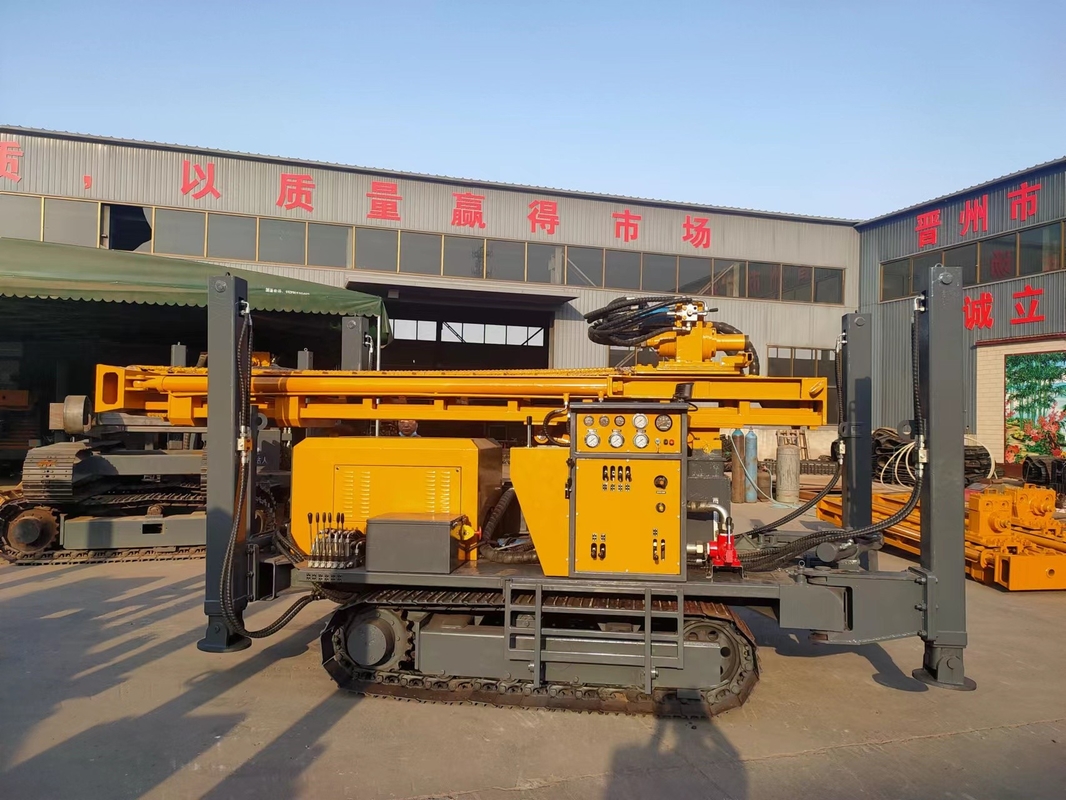

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
