260m Depth Tractor Drilling Machine Diesel Motor Power Engine

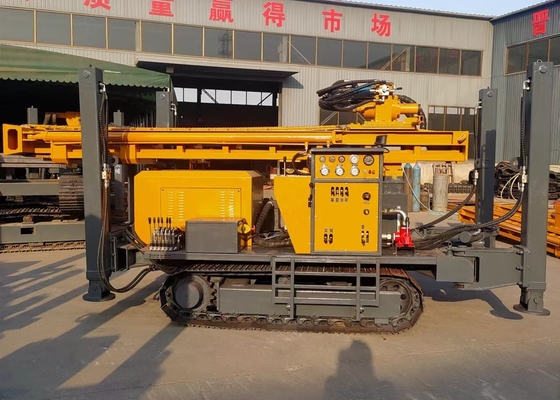

Large Image : 260m Depth Tractor Drilling Machine Diesel Motor Power Engine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-260

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Naked
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	1000year

Contact Now

Detailed Product Description

Type:	Water Well Drilling Rig	Voltage:	380V
Model Number:	ST-260	Name:	Well Drilling Equipment
Air Pressure:	1.25-3.5Mpa	Weight Of The Rig:	4m×1.7m×2.2m
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	260m depth water well drilling rig , diesel motor water well drilling rig , 260m depth water well drilling equipment

260m Depth Tractor Drilling Machine Diesel Motor Power Engine

A high-performance water well drilling rig designed for professional applications with a maximum drilling depth of 260 meters.

Product Specifications

Attribute	Value
Type	Water Well Drilling Rig
Voltage	380V
Model Number	ST-260
Air Pressure	1.25-3.5Mpa
Weight of the Rig	4m×1.7m×2.2m
Warranty	1 Year
After-sales Service	Engineers available to service machinery overseas

Product Overview

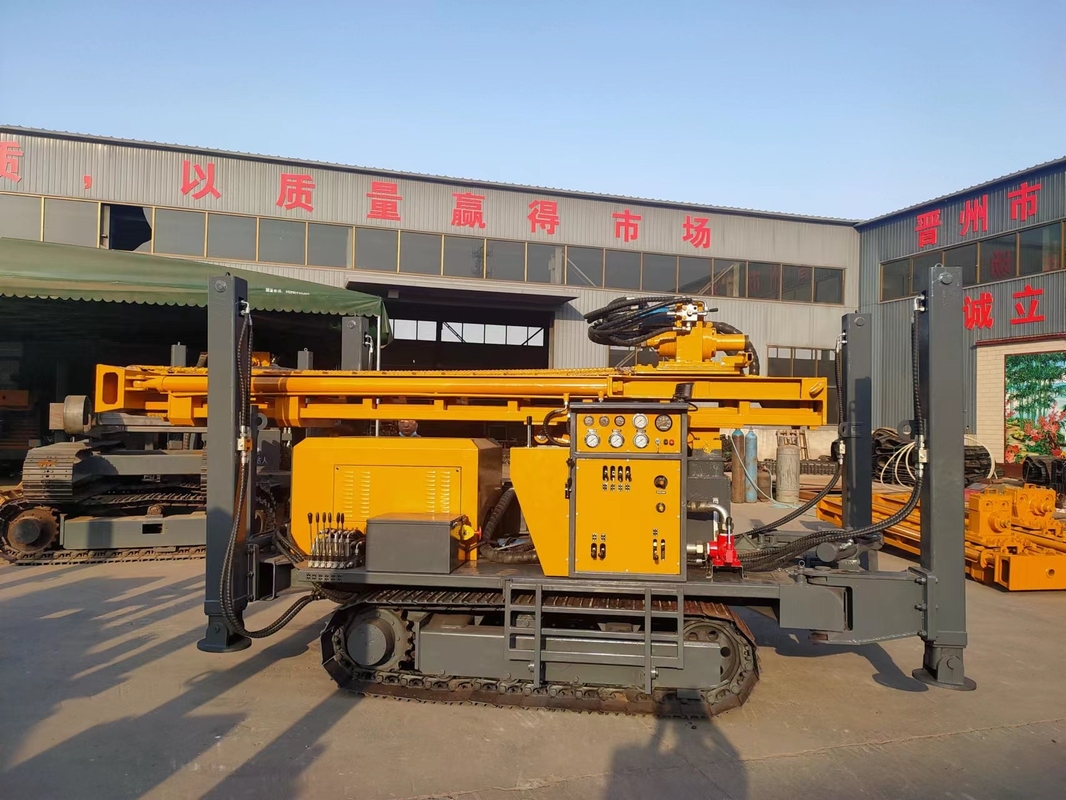

The ST260 Water Well Drilling Rig Machine with Crawler Chassis is a lightweight, mobile drilling solution with a maximum drilling depth of 260m and drilling diameter of 100-219mm. Ideal for engineering, agricultural irrigation, geothermal, and civil applications in both hydraulic and air drilling modes.

Technical Parameters

Weight of whole machine	5.5T
Drilling caliber	140-254mm
Drilling depth	200m
One-time push length	3.3m
Walking speed	2.5km/h
Climbing ability	Max. 30°
Power of main machine	76kw
Working pressure	1.7-2.5mpa
Air consumption	17-31m3/min
Diameter of drill rod	76, 89mm
Length of drill rod	1.5, 2.0, 3.0m
Lifting force	12T
Rotation speed	45-65rpm
Rotation torque	3200-4600N.m
Dimension	380015002200mm

Key Features

Powerful Engine: Equipped with Guangxi Yuchai's 77 Kw turbocharged engine
Durable Traveling System: Reduction gearbox-equipped motor for extended service life
Efficient Hydraulic System: Parallel gearbox design with separate oil pump for optimal power distribution
Robust Power Head: Integrally cast gearbox with dual motors for high torque and durability
Professional Chassis: Excavator-grade chassis with wide chain plates for minimal road damage
Safety Features: Boom limiters and protective tubing jackets for enhanced operational safety
High Efficiency: 42KW diesel engine delivers powerful drilling performance
Mobility: All-terrain self-propelled capability with easy operation
